Description
300mA High Speed LDO Regulator with ON/OFF Switch LPL1228 Rev.1.0 .
The LPL1228 series is a high speed LDO regulator that features high accurate, low noise, high ripple rejection, low dropout and low power consumption.
Features
* Maximum Output Current: 300mA
* Input Voltage Range: 1.6V~5.5V
* Dropout Voltage: 200mV @300mA, VOUT=3V
* Maximum Operating Voltage: 6V
* Output Voltage: 1.2V ~ 4.0V
(Accuracy ±2%) 0.1V increments
* Low Power Consumption: 100μA (TYP. )
* Stand-by Current: 0.1uA
* Hig
Applications
* Mobile devices
* Wireless communications
* Modules
* Mobile phones

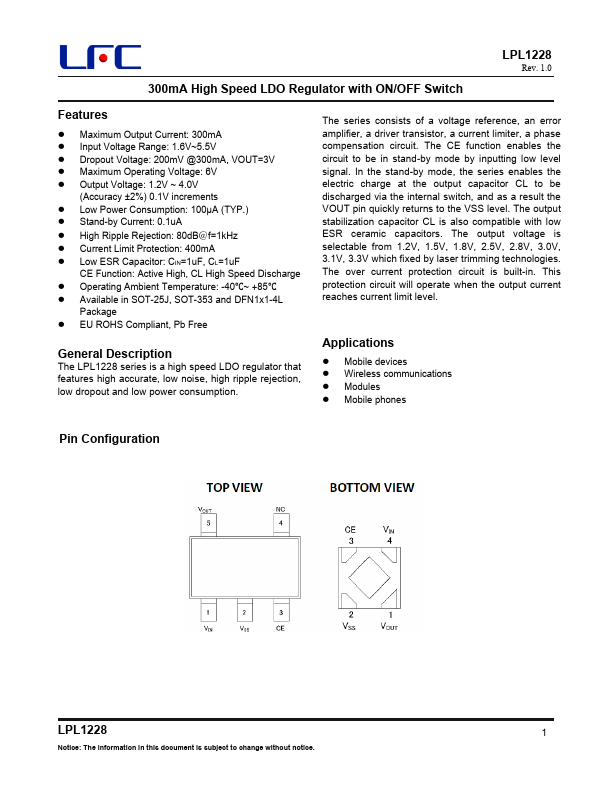

Pin Configuration
LPL1228
1
Notice: The information in this document is subject to change without notice. Typical Application Circuit
LPL1228
Rev. 1.0

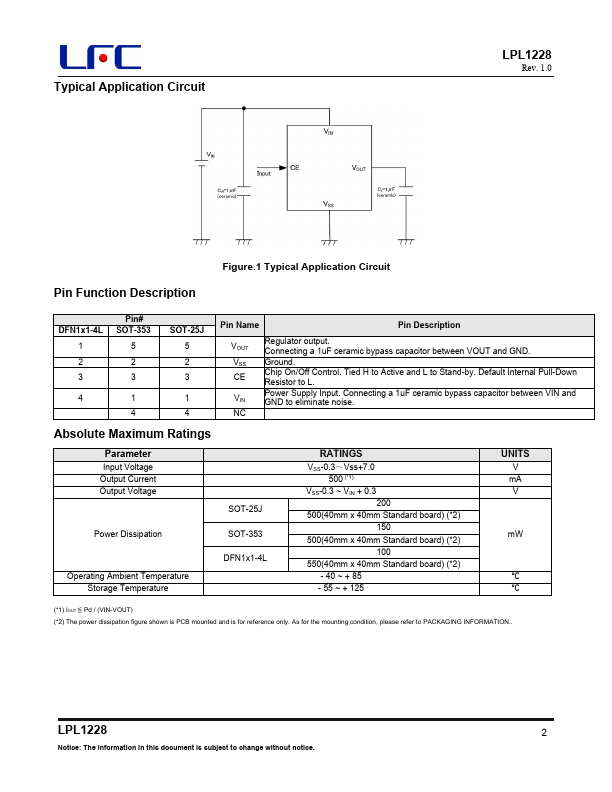

Figure.1 Typical Application Circuit
Pin Function Descri
