GM76C8128CLL-W - CMOS Static RAM

This page provides the datasheet information for the GM76C8128CLL-W, a member of the GM76C8128CL CMOS Static RAM family.

Datasheet Summary

Description

The GM76C8128CL/CLL-W is a 1,048,576 bits static random access memory organized as 131,072 words by 8 bits.

Using a 0.6um advanced CMOS technology and operated from a single 2.7V to 5.5V supply.

Advanced circuit technique provide both high speed and low power consumption.

Features

  • Fast Speed : 55/70ns at Vcc=5V+/-10% 120/150ns at Vcc=3V+/-10%.
  • Low Power Standby and Low Power Operation -Standby : 0.11mW Max. at Vcc=5V+/-10% 49.5uW Max. at Vcc=3V+/-10% -Operation : 385mW Max. at Vcc=5V+/-10% DataSheet4U. com 66mW Max. at Vcc=3V+/10%.
  • Completely Static RAM : No Clock or Timing Strobe Required.
  • Equal Access and Cycle Time.
  • TTL compatible inputs and outputs.
  • Capability of Battery Back-up Operation.
  • Single +2.7V ~ +5.5V Operation A0.
  • Stan.

📥 Download Datasheet

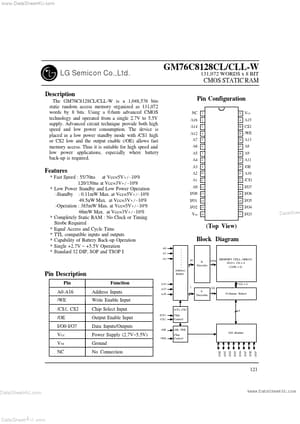

Datasheet preview – GM76C8128CLL-W

Datasheet Details

Part number GM76C8128CLL-W
Manufacturer LG Semicon
File Size 286.26 KB
Description CMOS Static RAM
Datasheet download datasheet GM76C8128CLL-W Datasheet
Additional preview pages of the GM76C8128CLL-W datasheet.

📁 Similar Datasheet

  • GM76C88 - 65536 Bit RAM (LG)
  • GM76C88 - 8192 x 8 Bit SRAM (GoldStar)
  • GM76C88AL - 65536 Bit RAM (LG)
  • GM76C256C - 32K x8 bit 5.0V Low Power CMOS slow SRAM (Hynix Semiconductor)
  • GM76C256CE - 32K x8 bit 5.0V Low Power CMOS slow SRAM (Hynix Semiconductor)
  • GM76C256CL - 32K x8 bit 5.0V Low Power CMOS slow SRAM (Hynix Semiconductor)
  • GM76C256CLE - 32K x8 bit 5.0V Low Power CMOS slow SRAM (Hynix Semiconductor)
  • GM76C256CLEFW - 32K x8 bit 5.0V Low Power CMOS slow SRAM (Hynix Semiconductor)
  • GM76C256CLET - 32K x8 bit 5.0V Low Power CMOS slow SRAM (Hynix Semiconductor)
  • GM76C256CLFW - 32K x8 bit 5.0V Low Power CMOS slow SRAM (Hynix Semiconductor)
Other Datasheets by LG Semicon

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com LG Semicon Co.,Ltd. Description The GM76C8128CL/CLL-W is a 1,048,576 bits static random access memory organized as 131,072 words by 8 bits. Using a 0.6um advanced CMOS technology and operated from a single 2.7V to 5.5V supply. Advanced circuit technique provide both high speed and low power consumption. The device is placed in a low power standby mode with /CS1 high or CS2 low and the output enable (/OE) allows fast memory access. Thus it is suitable for high speed and low power applications, especially where battery back-up is required.
