LC230WX3 - Liquid Crystal Display

LG Semicon

📥 Download Datasheet

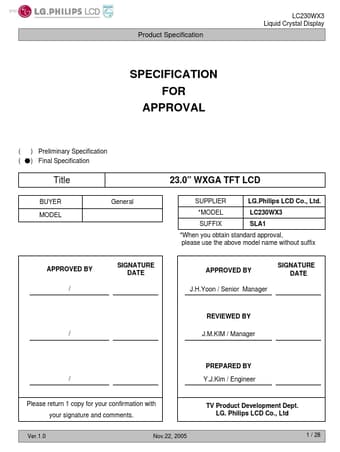

LC230WX3 Datasheet Preview — Preview of LC230WX3 PDF

Datasheet Details

Part number	LC230WX3
Manufacturer	LG Semicon
File Size	459.90 KB
Description	Liquid Crystal Display
Datasheet	LC230WX3_LGSemicon.pdf

LC230WX3 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR PROTE

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment 23 inches (582.96mm) diagonal 546.0mm(H) x 318.3mm(V) x 42.1mm(D) (Typ. ) 0.124mm x 0.372mm x RGB 1366 horiz. by 768 vert. pixels RGB stripe arrangement 8-bit, 16.7 M colors 450 cd/m2 (Center 1 point Typ. ) Viewing angle free ( R/L 178(Typ. ), U/D 178(Typ. )) Total 66.84Watt (Typ. ) (Logic=3.24W, Lamp=63.6W [Lamp current=6.5.
