LB043WQ1-TD01, LB043WQ1 - LCD

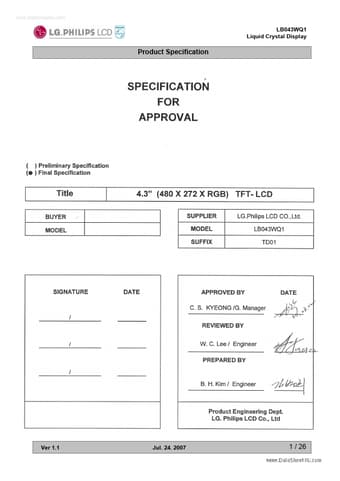

LB043WQ1-TD01 Datasheet Preview — This datasheet PDF includes multiple part numbers: LB043WQ1-TD01, LB043WQ1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LB043WQ1-TD01, LB043WQ1
Manufacturer	LG
File Size	2.31 MB
Description	LCD
Datasheet	LB043WQ1_LG.pdf
Note	This datasheet PDF includes multiple part numbers: LB043WQ1-TD01, LB043WQ1. Please refer to the document for exact specifications by model.

LB043WQ1-TD01 Product details

Description

Interface Connection Absolute Maximum Ratings Electrical Characteristics Touch Screen Panel Optical Characteristics Mechanical Characteristics Color Input Data Reference Reliability Test Outline Dimension Packing Precautions Page 3 4 6 8 9 14 17 20 21 22 23 24 25 Ver 1.1 Jul.24. 2007 2 / 26 www.DataSheet4U.com LB043WQ1 Liquid Crystal Display Product Specification RECORD OF REVISIONS Revision No Revision Date 1.0 1.1 Jul.5. 2007 Jul.24. 2007 Page 17 Final Description Color Chromatici

Features

High Brightness & contrast ratio.
Wide Viewing Angle.
WQVGA(480X272 pixels) resolution.
8 Bits color depth.
T-Con & Power Block Integrated In D-IC.
Low power consumption.
Touch screen panel (Film to Glass type).
DE (Data Enable) & SYNC mode.
DE, Vsync, Hsync, DOTCLK G1 G3 B G R TFT-LCD Panel (480´272xRGB) G2 G4 (Scan Direction) G271 D-IC G272 User Connector 45 Pin VLED1－ X1 Y1 X2 Y2 (VDD) Input Power In.
