LC320DXN-SER3 - WXGA TFT LCD

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC ENVIRONMENT

Features

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 1.0 LED Driver Back light Assembly 31.51 inches(800.4mm) diagonal 760.0 X 450.0 X 32.5(B) (Typ. ) 510.75༁ x 510.75༁ x R,G,B 1366 horiz. by 768 vert. pixels RGB stripe arrangement 8bit(D), 16,7 M colors 300 cd/m2 (Center 1 point) (Typ. ) Viewing angle free ( R/L 178(Min. ), U/D 178(Min. )) Total 42.98 Watt (Logic=4.0.

📥 Download Datasheet

Datasheet preview – LC320DXN-SER3

Datasheet Details

Part number LC320DXN-SER3
Manufacturer LG
File Size 1.51 MB
Description WXGA TFT LCD
Datasheet download datasheet LC320DXN-SER3 Datasheet
Additional preview pages of the LC320DXN-SER3 datasheet.

📁 Similar Datasheet

Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text

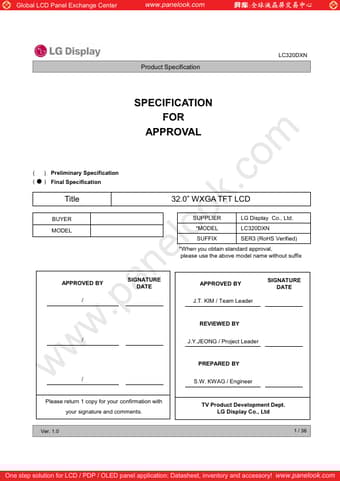

Global LCD Panel Exchange Center www.panelook.com Product Specification SPECIFICATION FOR APPROVAL LC320DXN ( ) Preliminary Specification ( ̻ ) Final Specification Title BUYER MODEL 32.0” WXGA TFT LCD SUPPLIER LG Display Co., Ltd. *MODEL LC320DXN SUFFIX SER3 (RoHS Verified) *When you obtain standard approval, please use the above model name without suffix APPROVED BY / SIGNATURE DATE APPROVED BY J.T. KIM / Team Leader SIGNATURE DATE / / Please return 1 copy for your confirmation with your signature and comments. Ver. 1.0 REVIEWED BY J.Y.JEONG / Project Leader PREPARED BY S.W. KWAG / Engineer TV Product Development Dept. LG Display Co., Ltd 1 / 36 One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.
