LC320W01-SLA1 LCD by LG - Datasheet Preview — Datasheet preview – LC320W01-SLA1

Datasheet Details

Part number	LC320W01-SLA1
Manufacturer	LG
File Size	1.03 MB
Description	LCD
Datasheet	LC320W01-SLA1 Datasheet

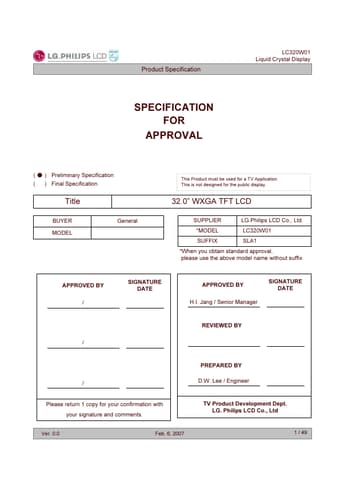

Additional preview pages of the LC320W01-SLA1 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS ITEM Page 1 2 3 4 5 6 6 8 12 13 14 15 17 21 24 25 25 25 26 26 26 27 27 27 28 28 28 28 2 / 49 OPERATING PRECAUTIONS ELECTROSTAT

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White 31.51 inches(800.4mm) diagonal 170.25༁ x 510.75༁ x RGB 8bit, 16,7 M colors 760.0 mm(H) x 450.0 mm(V) x 48.0 mm(D) (Typ. ) 1366 horiz. by 768 vert. pixels RGB stripe arrangement 500 cd/m2 (Center 1 point) (Typ. ) Viewing Angle (CR>10) Power Consumption Weight Viewing angle free ( R/L 178(Typ. ), U/D 178(Typ. )) (0RT polarizer applied) Total 113.70Watt (Typ. ) (Logic=3.70 W, Lamp=110W [IBL=112mA] ) 6,050g (Ty.
