LC320WX1 - TFT LCD

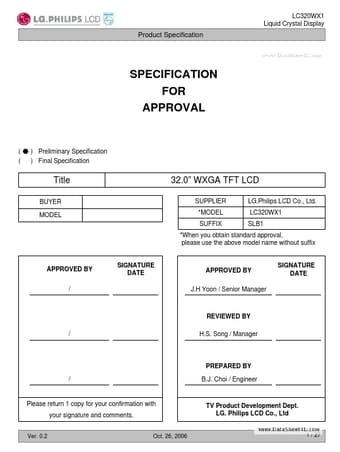

LC320WX1 Datasheet Preview — Preview of LC320WX1 PDF

Datasheet Details

Part number	LC320WX1
Manufacturer	LG
File Size	776.82 KB
Description	TFT LCD
Datasheet	LC320WX1_LG.pdf

LC320WX1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR PROTE

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment 31.51 inches(800.4mm) diagonal 760.0 mm(H) x 450.0 mm(V) x 48.0 mm(D) (Typ. ) 170.25㎛ x 510.75㎛ x RGB 1366 horiz. by 768 vert. pixels RGB stripe arrangement 8-bit, 16.7 M / 10-bit, 1Billon colors 500 cd/m2 (Center 1 point Typ. ) Viewing angle free ( R/L 178(Typ. ), U/D 178(Typ. )) Total 90.5 Watt (Typ. ) (Logic= 6.5W, Lamp=8.
