LC320WXN-SCA1 - LCD

The LC320WXN-SCA1 by LG is a LCD. Below is the official datasheet preview.

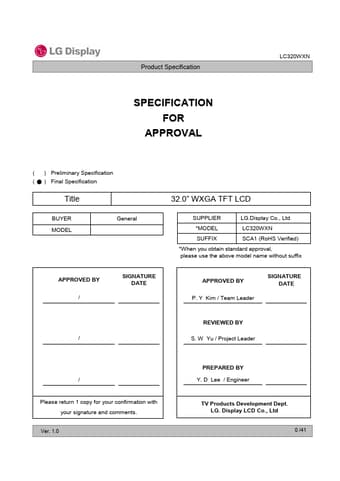

LC320WXN-SCA1 LCD by LG - Datasheet Preview — Official preview page of the **LC320WXN-SCA1** LCD datasheet (LG).

Datasheet Details

Part number	LC320WXN-SCA1
Manufacturer	LG
File Size	1.00 MB
Description	LCD
Datasheet	LC320WXN-SCA1_LG.pdf
Additional preview pages of the LC320WXN-SCA1 datasheet.

LC320WXN-SCA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment 31.51 inches(800.4mm) diagonal 760.0(H) x 450.0 (V) x 48.0 mm(D) (Typ. ) 0.51075 mm x 0.17025 mm x RGB 1366 horiz. by 768 vert. Pixels, RGB stripe arrangement 8bit , 16.7M colors 450 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 83.6 W (Typ. ) (Logic=3.6 W, Inverter=80W ) 5.0Kg (Typ. ) Transm.
