LC470WU1-SL02 - WUXGA TFT LCD

LG

📥 Download Datasheet

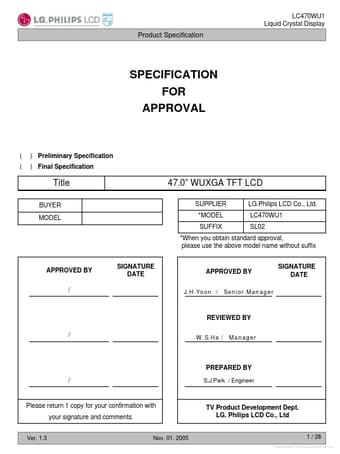

LC470WU1-SL02 Datasheet Preview — Preview of LC470WU1-SL02 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: LC470WU1-SL02
Manufacturer: LG
File Size: 1.18 MB
Datasheet: LC470WU1-SL02_LG.pdf
Description: WUXGA TFT LCD

LC470WU1-SL02 Product details

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment 46.96 inch (1192.87mm) diagonal 1096.0(H) x 640.0 (V) x 48.1 mm(D) (Typ. ) 0.5415 mm x 0.5415 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8-bit, 16.7 M colors 550 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Typ. ), U/D 178 (Typ. )) Total 231W (Typ. ) (Logic=8.4W, Inverter=223 W [IBL= 5.8] ) 20.0K g (Typ.
