LM181E06-A4M1 - TFT LCD Module

Datasheet Summary

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVE FORMS COLOR INPUT DATA REFERANCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING

Features

  • Active screen size Outline Dimension Pixel Pitch Pixel Format Color depth Luminance, white Power Consumption Weight Display operating mode Surface treatments Ver 0.0 18.1 inches (459.74mm) diagonal 389.0(H) x 317.2(V) x 27.0(D) mm(Typ . ) 0.2805 mm x 0.2805 mm 1280 horizontal By 1024 vertical Pixels RGB stripe arrangement 8-bits, 16,777,216 colors 250 cd/m 2(Typ. Center 1 point) Total 29.52 Watt(Typ. ), (4.32Watt @Vcc, 25.2 Watt @250cd/ ? [Lamp=7mA]) 3100g (Typ . ) Transmissive mode, normally black.

📥 Download Datasheet

Datasheet preview – LM181E06-A4M1

Datasheet Details

Part number LM181E06-A4M1
Manufacturer LG
File Size 712.54 KB
Description TFT LCD Module
Datasheet download datasheet LM181E06-A4M1 Datasheet
Additional preview pages of the LM181E06-A4M1 datasheet.

📁 Similar Datasheet

  • LM181E06 - SPECIFICATION FOR APPROVAL (NXP)
  • LM1812 - ULTRASONIC TRANSCEIVER (National Semiconductor)
  • LM1815 - Adaptive Variable Reluctance Sensor Amplifier (National Semiconductor)
  • LM1815 - Adaptive Variable Reluctance Sensor Amplifier (Texas Instruments)
  • LM1815EP - Enhanced Plastic Adaptive Variable Reluctance Sensor Amplifier (National Semiconductor)
  • LM1818 - Electronically Switched Audio Tape System (National Semiconductor)
  • LM1819 - Air-Core Meter Driver (National Semiconductor)
  • LM1800 - LM1800 Phase-Locked Loop FM Stereo Demodulator (National Semiconductor)
  • LM1801 - Battery Operated Power Comparator (National Semiconductor)
  • LM1823 - VIDEO IF AMPLIFIER/PLL DETECTOR SYSTEM (National Semiconductor)
Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text

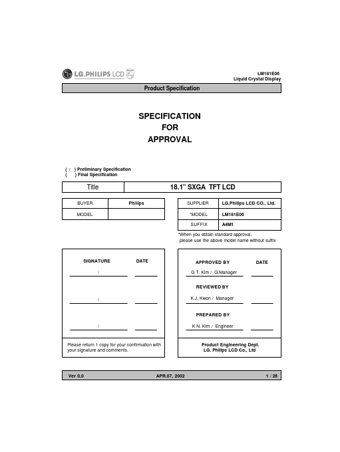

LM181E06 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ? ) Preliminary Specification ( ) Final Specification Title BUYER MODEL Philips 18.1” SXGA TFT LCD SUPPLIER *MODEL SUFFIX www.DataSheet.net/ LG.Philips LCD CO., Ltd. LM181E06 A4M1 *When you obtain standard approval, please use the above model name without suffix SIGNATURE / DATE APPROVED BY G T. Kim / G.Manager REVIEWED BY DATE / K.J. Kwon / Manager PREPARED BY / K N. Kim / Engineer Please return 1 copy for your confirmation with your signature and comments. Product Engineering Dept. LG. Philips LCD Co., Ltd Ver 0.0 APR.07, 2002 1 / 26 Datasheet pdf - http://www.DataSheet4U.c LM181E06 Liquid Crystal Display Product Specification CONTENTS NO.
