LM190E03-B4 - LCD Module

Product Overview

LM190E03-B4 LCD Module by LG - Datasheet Preview — Datasheet preview – LM190E03-B4

Datasheet Details

Part number	LM190E03-B4
Manufacturer	LG
File Size	438.08 KB
Description	LCD Module
Datasheet	LM190E03-B4 Datasheet

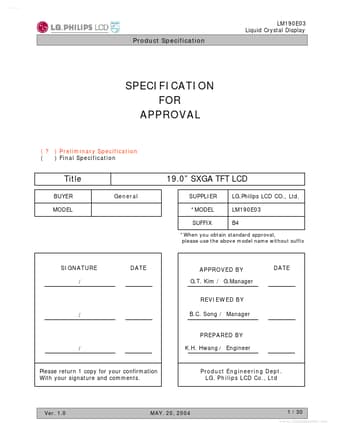

Additional preview pages of the LM190E03-B4 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE POWER DIP CONDITION OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STROAGE HANDLING P

Features

Active screen size Outline Dimension Pixel Pitch Pixel Format Interface Color depth Luminance, white Viewing Angle (CR>10) Power Consumption Weight Display operating mode Surface treatments Ver. 1.0 19.0 inches (481.84mm) diagonal 404.2(H) x 330.0(V) x 20.0(D) mm(Typ. ) 0.098.
RGB(H)mm x 0.294(V)mm 1280 horizontal By 1024 vertical Pixels. RGB stripe arrangement LVDS 2Port 16.2M colors 2 ( Center 1Point, typ) 250 cd/m Viewing Angle Free [ R/L 140(Typ. ), U/D 140(Typ. ) ] Total 21.05Watt(Typ. ),.
