LP121WX3-TLB1 Datasheet (LG)

LP121WX3-TLB1, WXGA TFT LCD

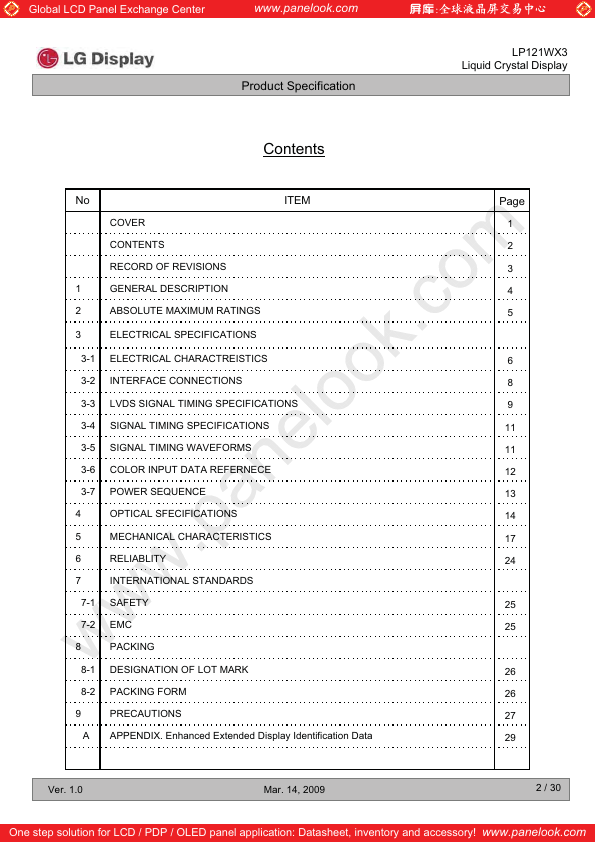

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 LVDS SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING SPECIFICATIONS 3-5 SIGNAL TIMING WAVEFORMS 3-6 COLOR INPUT DATA REFERNECE 3-7 POWER SEQUENCE 4 OPTICAL SFECIFICATIONS 5 MECH

Global LCD Panel Exchange Center www.panelook.com Product Specification SPECIFICATION FOR APPROVAL LP121WX3 Liquid Crystal Display ( ) Preliminary Specification ( ଝ ) Final Specification Title Customer MODEL LENOVO 12.1” WXGA TFT LCD SUPPLIER LG Display Co., Ltd.

MODEL LP121WX3 Suffix TLB1 When you obtain standard approval, please use the above model name without suffix APPROVED BY / / / SIGNATURE Please return 1 copy for your confirmation with your signature and comme

LP121WX3-TLB1 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 12.1 inches diagonal 275.8 (H) ϧ 178.1 (V) ϧ 5.5(D, max) mm 0.204 mm Ý 0.204 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangem
