LP121X04-C2 - LCD

📥 Download Datasheet

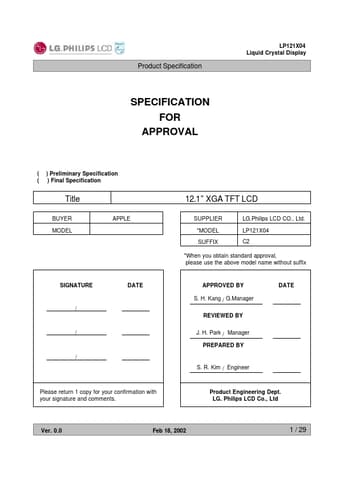

LP121X04-C2 Datasheet Preview — Preview of LP121X04-C2 PDF

Datasheet Details

Part number	LP121X04-C2
Manufacturer	LG
File Size	405.17 KB
Description	LCD
Datasheet	LP121X04-C2_LG.pdf

LP121X04-C2 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ITEM Page 1 2 3 4 5 ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PAKING FORM PRECAUTIONS EDID DATA 6 8 10 11 12 13 14 18 22 23 23 24 24 25 27 Ver.0.0 Feb 18, 2002 2 / 29 Datasheetpdf-http://www.DataSheet4U.net/

Features

Active screen size Outline Dimension Pixel Pitch Pixel format Color depth Luminance, white Power Consumption Weight Display operating mode Surface treatments 12.1 inches(30.73cm) diagonal 261(H) x 199(V) x 5.1(D) mm(Typ. ) 0.240 mm x 0.240mm 1024 horiz. By 768 vert. Pixels RGB stripes arrangement 6-bit, 262,144 colors 143 cd/m2(Typ. ) , Average 5point @ 5.5.
Ì Total 4.0 Watt(Typ. ) 300g(Typ. ) Transmissive mode, normally white Hard coating(3H) Anti-glare treatment of the both(front,back) polarize.
