LP141WP1-TLC2 Datasheet - LG

LP141WP1-TLC2, Liquid Crystal Display

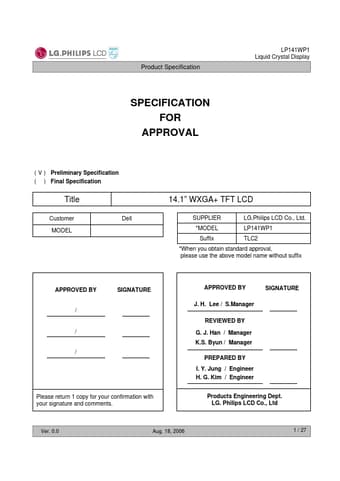

LP141WP1 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( V ) Preliminary Specification ( ) Final Specification Title Cus.
ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFOR.

LP141WP1-TLC2_LG.pdf

LP141WP1-TLC2 Datasheet Preview — Preview of LP141WP1-TLC2 PDF

Datasheet Details

Part number:

LP141WP1-TLC2

Manufacturer:

File Size:

372.63 KB

Description:

Liquid Crystal Display

Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply Ver. 0.0 14.1 inches diagonal 320 (H) × 206(V) × 5.5(D, max) mm 0.2109 mm × 0.2109 mm 1440 horiz. By 900 vert. Pixels RGB strip arr

Applications

* where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP141WP1 characteristics provide an excellent flat display for office automation products such as Notebook PC. Column Driver Circuit LVDS & Ti
