LP141WX1-TLA5 - Liquid Crystal Display

Datasheet Summary

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 7 9 9 10 11 12 16 20 COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARA

Features

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 14.1 inches diagonal 319.5 (H, typ) × 205.5(V, typ) × 5.3(D, max) [mm] 0.2373 mm × 0.2373 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 200 cd/m2(Typ.5 point) Total 5.38 Watt(Typ. ) @ LCM circuit 1.28Watt(Typ. ), B/L input 4.1Watt(Typ. ) 400 g (Max. ), 390g(Typ. ) Transmissive mode, normally white Anti.

📥 Download Datasheet

Datasheet preview – LP141WX1-TLA5

Datasheet Details

Part number LP141WX1-TLA5
Manufacturer LG
File Size 561.71 KB
Description Liquid Crystal Display
Datasheet download datasheet LP141WX1-TLA5 Datasheet
Additional preview pages of the LP141WX1-TLA5 datasheet.

📁 Similar Datasheet

Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text

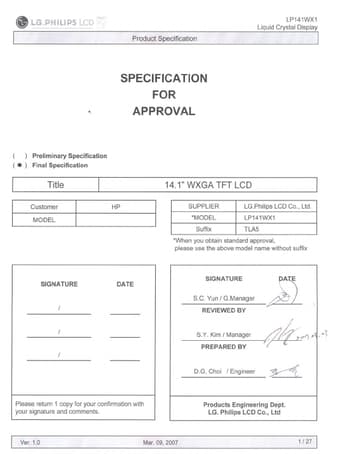

LP141WX1 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ( ) Preliminary Specification ) Final Specification Title Customer MODEL HP 14.1” WXGA TFT LCD SUPPLIER *MODEL Suffix www.DataSheet.net/ LG.Philips LCD Co., Ltd. LP141WX1 TLA5 *When you obtain standard approval, please use the above model name without suffix SIGNATURE DATE SIGNATURE S.C. Yun / G.Manager DATE / REVIEWED BY / S.Y. Kim / Manager PREPARED BY / D.G. Choi / Engineer Please return 1 copy for your confirmation with your signature and comments. Products Engineering Dept. LG. Philips LCD Co., Ltd Ver. 1.0 Mar. 09, 2007 1 / 27 Datasheet pdf - http://www.DataSheet4U.co.
