LP141WX5-TLD1 Datasheet - LG

WXGA TFT LCD

LP141WX5-TLD1 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 14.1 inches diagonal 319.5(H,Typ.) × 205.5(V,Typ.) × 5.5(D,Max.) [mm] 0.2373mm × 0.2373 mm 1280 horiz. By 800 vert. Pixels RGB str

LP141WX5-TLD1 General Description

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 LVDS SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING SPECIFICATIONS 3-5 SIGNAL TIMING WAVEFORMS 3-6 COLOR INPUT DATA REFERNECE 3-7 POWER SEQUENCE 4 OPTICAL SFECIFICATIONS 5 MECHAN.

LP141WX5-TLD1 Datasheet (516.97 KB)

Preview of LP141WX5-TLD1 PDF

Datasheet Details

Part number:

LP141WX5-TLD1

Manufacturer:

LG

File Size:

516.97 KB

Description:

Wxga tft lcd.

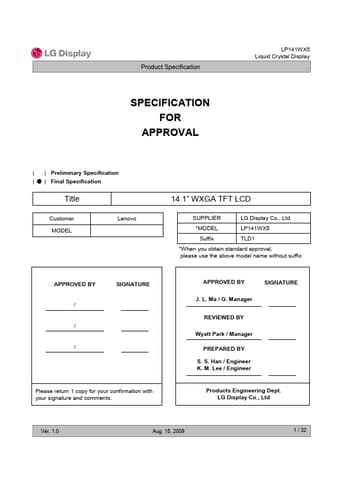

Product Specification SPECIFICATION FOR APPROVAL LP141WX5 Liquid Crystal Display ( ) Preliminary Specification ( ) Final Specification Title .
