LP171WE2-TLA2 - LCD

The LP171WE2-TLA2 by LG is a LCD. Below is the official datasheet preview.

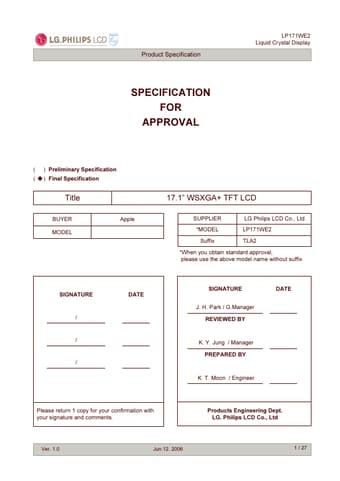

LP171WE2-TLA2 LCD by LG - Datasheet Preview — Official preview page of the **LP171WE2-TLA2** LCD datasheet (LG).

Datasheet Details

Part number	LP171WE2-TLA2
Manufacturer	LG
File Size	1.25 MB
Description	LCD
Datasheet	LP171WE2-TLA2_LG.pdf
Additional preview pages of the LP171WE2-TLA2 datasheet.

LP171WE2-TLA2 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX A.

Features

Active Screen Size Pixel Pitch Outline Dimension 382.2(H)[typ. ] Ý 244.5(V)[typ. ] Ý 6.5(D) mm [Max. ] 1680 horiz. By 1050 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 290 cd/m2[typ. ], 5p average 685g [Max. ] , 670g [Typ. ] 0.2187 mm Ý 0.2187 mm 17.1 inches diagonal Color Depth Pixel Format Luminance, White Weight Power Consumption Display Operating Mode Surface Treatment Total 6.16 Watt(Typ. ) @ LCM circuit 1.6 Watt(Typ. ), B/L input 4.56 Watt(Typ. ) Transmissive mode, normally white H.
