LP171WP4-TLQ2 - WXGA+ TFT LCD

Product Overview

LP171WP4-TLQ2 WXGA+ TFT LCD by LG - Datasheet Preview — Datasheet preview – LP171WP4-TLQ2

Datasheet Details

Part number	LP171WP4-TLQ2
Manufacturer	LG
File Size	1.34 MB
Description	WXGA+ TFT LCD
Datasheet	LP171WP4-TLQ2 Datasheet

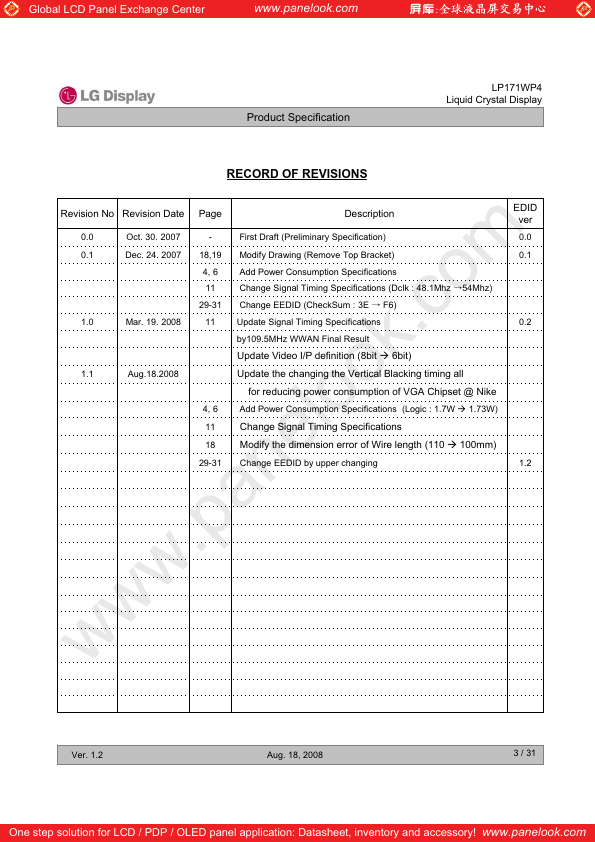

Additional preview pages of the LP171WP4-TLQ2 datasheet.

Product details

Description

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 LVDS SIGNAL TIMING SPECIFICATION 3-3 SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING WAVEFORMS 3-5 COLOR INPUT DATA REFERNECE 3-6 POWER SEQUENCE 4 OPTICAL SFECIFICATIONS 5 MECHANICAL CHARACTERISTICS A APPENDIX.LPL PROPOSAL FOR SYSTEM COVER DESIGN 6 RELIABLITY 7 INTERNATIONAL STANDARDS 7-1 SAFETY 7-2 EMC 8 PACKING 8-1 DESIGNATION OF LOT MARK 8-2 PACKING FORM 9 PRECAUTIO

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 17.1 inches diagonal 382.2(H, typ) ϧ 244.5(V, typ) Ý 7.0(D,max) [mm] 0.255mm Ý 0.255 mm 1440 horiz. By 900 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 220 cd/m2(Typ.5 point) Total 6.53 Watt(Typ. ) @ LCM circuit 1.73 Watt(Typ. ), B/L input 4.80Watt(Typ. ) 720g (Max. ) Transmissive mode, normally white Black Panther(4H) A.
