15KPA110CA, 15KPA17A - Glass Passivated Junction TVS

Name: 15KPA110CA
SKU: 15KPA110CA-1084076

LGE

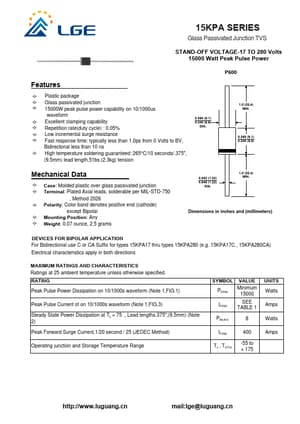

The 15KPA110CA by LGE is a Glass Passivated Junction TVS. Below is the official datasheet preview.

Datasheet Details

Part number	15KPA110CA, 15KPA17A
Manufacturer	LGE
File Size	104.86 KB
Description	Glass Passivated Junction TVS
Datasheet	15KPA17A-LGE.pdf
Note	This datasheet PDF includes multiple part numbers: 15KPA110CA, 15KPA17A. Please refer to the document for exact specifications by model.
Additional preview pages of the 15KPA110CA datasheet.

Plastic package Glass passivated junction 15000W peak pulse power capability on 10/1000us waveform Excellent clamping capability Repetition rate(duty cycle) : 0.05% Low incremental surge resistance Fast response time: typically less than 1.0ps from 0 Volts to BV, Bidirectonal less than 10 ns High temperature soldering guaranteed: 265°C/10 seconds/.375", (9.5mm) lead length,51bs. (2.3kg) tension 0.360 (9.1) 0.340 (8.6) DIA. P600 1.0 (25.4) MIN. 0.360 (9.1) 0.340 (8.6) Mechanical.
