1N5711W Surface Mount Schottky Barrier Diode

📥 Download Datasheet Datasheet Preview Page 1

Description

1N5711W 1N5711WS 1N5711L Small Signal Schottky Barrier Diode .

📥 Download Datasheet

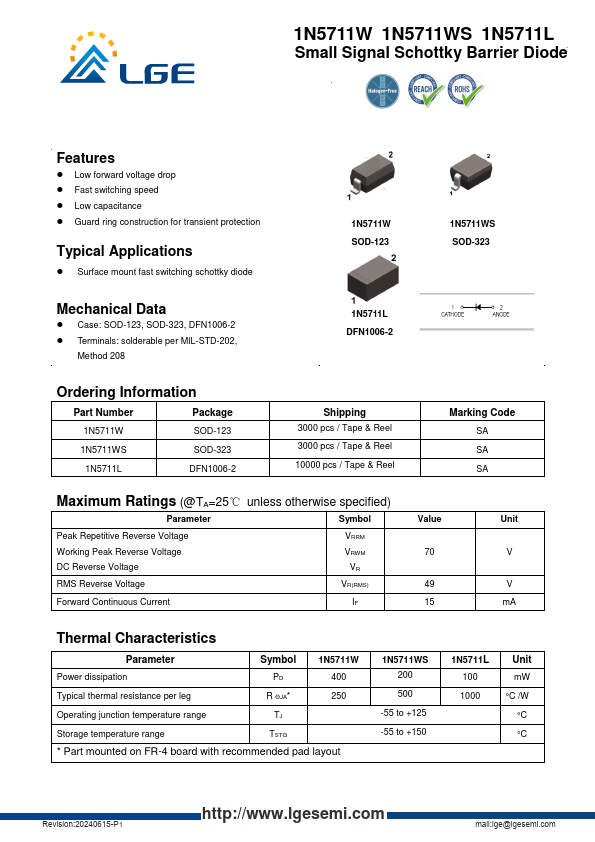

Preview of 1N5711W PDF

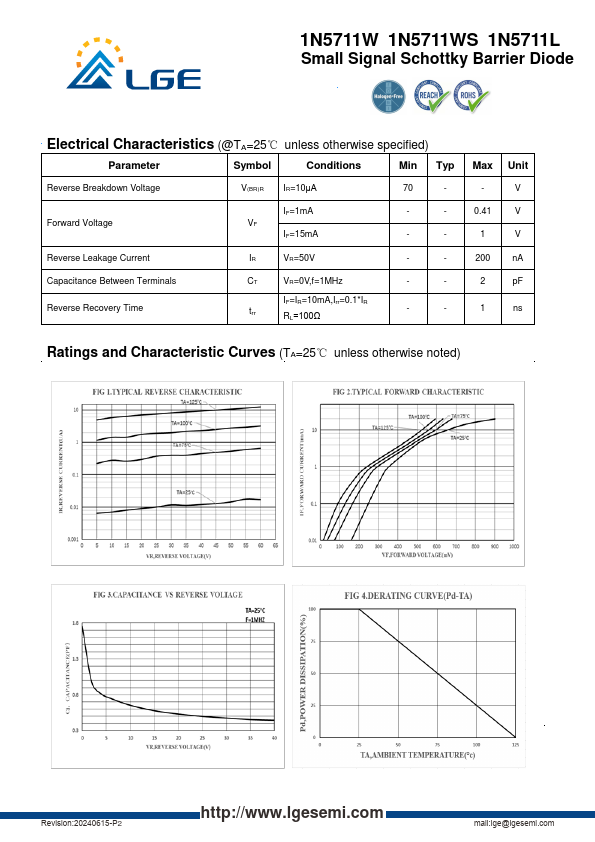

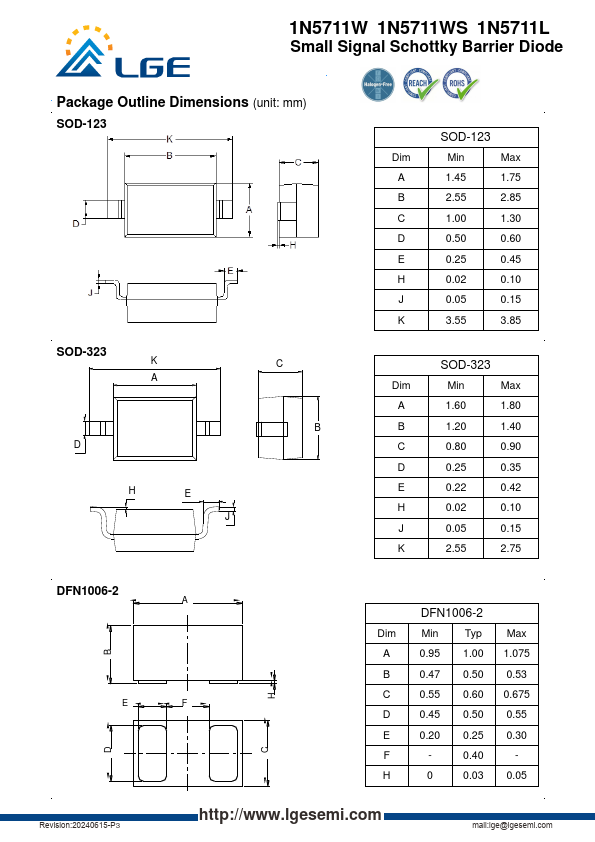

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
1N5711W
Manufacturer
LGE
File Size
802.34 KB
Datasheet
1N5711W-LGE.pdf
Description
Surface Mount Schottky Barrier Diode

Features

* Low forward voltage drop
* Fast switching speed
* Low capacitance

Applications

* Surface mount fast switching schottky diode 1N5711W SOD-123 1N5711WS SOD-323 Mechanical Data
* Case: SOD-123, SOD-323, DFN1006-2
* Terminals: solderable per MIL-STD-202, Method 208 1N5711L DFN1006-2 Ordering Information Part Number Package 1N5711W SOD-123 1N5711WS SOD-323 1
