1N5711WS, 1N5711W Surface Mount Schottky Barrier Diode

LGE

Description

1N5711W 1N5711WS 1N5711L Small Signal Schottky Barrier Diode .

📥 Download Datasheet

1N5711WS Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5711WS, 1N5711W. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1N5711WS, 1N5711W
Manufacturer: LGE
File Size: 802.34 KB
Datasheet: 1N5711W-LGE.pdf
Description: Surface Mount Schottky Barrier Diode
Note: This datasheet PDF includes multiple part numbers: 1N5711WS, 1N5711W.
Please refer to the document for exact specifications by model.

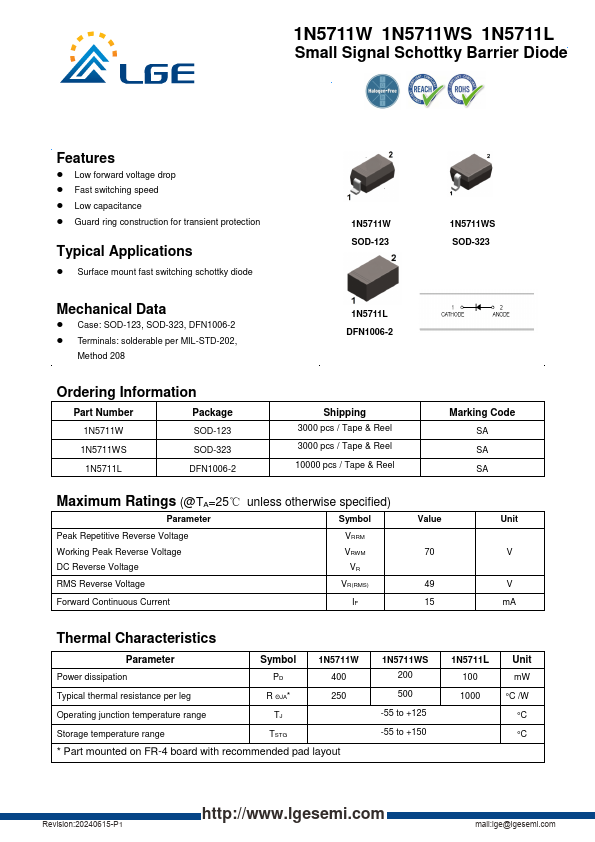

Features

* Low forward voltage drop
* Fast switching speed
* Low capacitance

Applications

* Surface mount fast switching schottky diode 1N5711W SOD-123 1N5711WS SOD-323 Mechanical Data

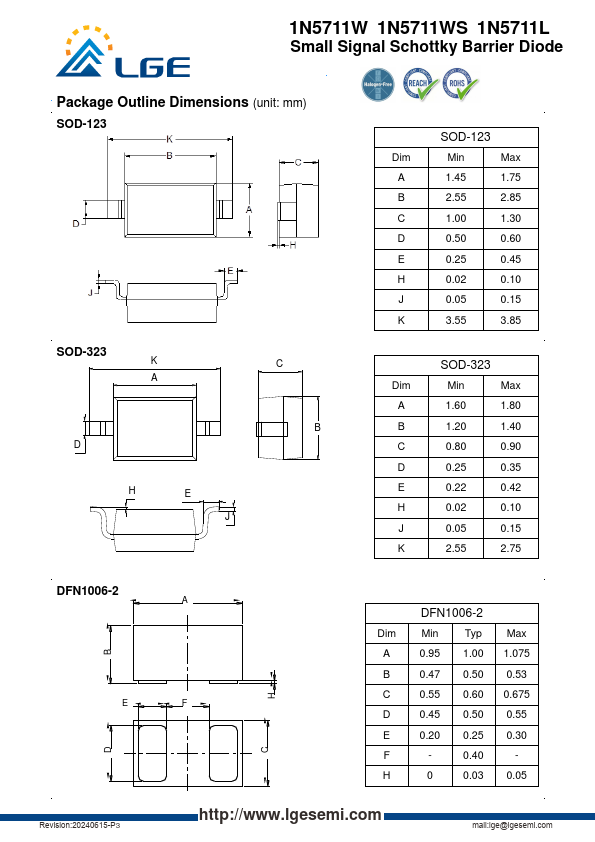

* Case: SOD-123, SOD-323, DFN1006-2
* Terminals: solderable per MIL-STD-202, Method 208 1N5711L DFN1006-2 Ordering Information Part Number Package 1N5711W SOD-123 1N5711WS SOD-323 1
