BY550-600, BY550-50 - Plastic Silicon Rectifiers

LGE

📥 Download Datasheet

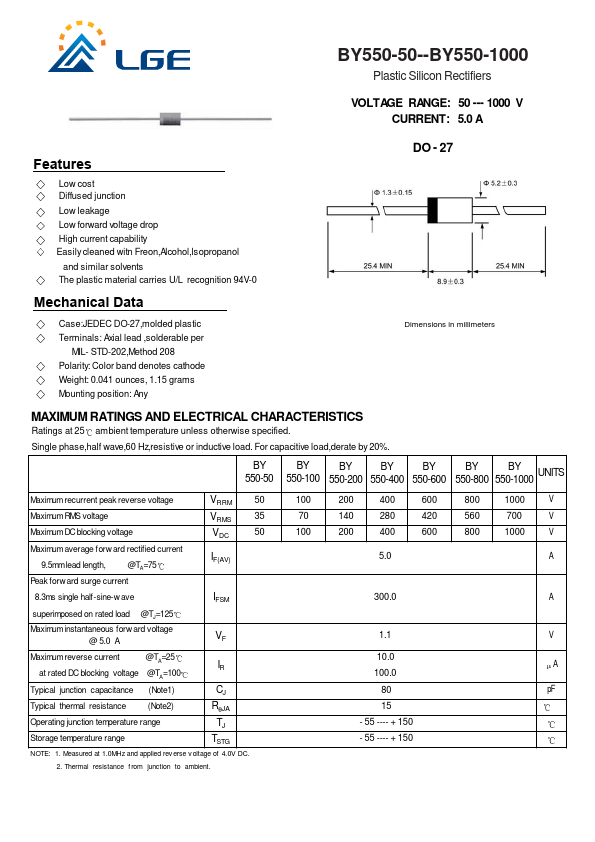

BY550-600 Datasheet Preview — This datasheet PDF includes multiple part numbers: BY550-600, BY550-50. Please refer to the document for exact specifications by model.

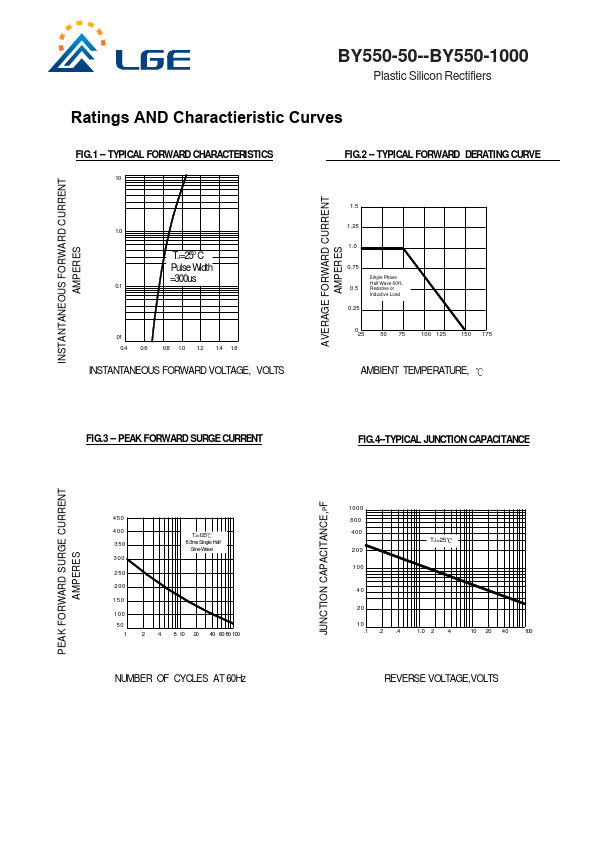

datasheet Preview Page 2

Datasheet Details

Part number	BY550-600, BY550-50
Manufacturer	LGE
File Size	121.60 KB
Description	Plastic Silicon Rectifiers
Datasheet	BY550-50-LGE.pdf
Note	This datasheet PDF includes multiple part numbers: BY550-600, BY550-50. Please refer to the document for exact specifications by model.

BY550-600 Product details

Features

Low cost Diffused junction Low leakage Low forward voltage drop High current capability Easily cleaned witn Freon,Alcohol,lsopropanol and similar solvents The plastic material carries U/L recognition 94V-0 DO - 27 Mechanical Data Case:JEDEC DO-27,molded plastic Terminals: Axial lead ,solderable per MIL- STD-202,Method 208 Polarity: Color band denotes cathode Weight: 0.041 ounces, 1.15 grams Mounting position: Any Dimensions in millimeters.
