DTC114EUA

The DTC114EUA is NPN Digital Transistor designed by LGE.

Product Overview

LGE

📥 Download Datasheet

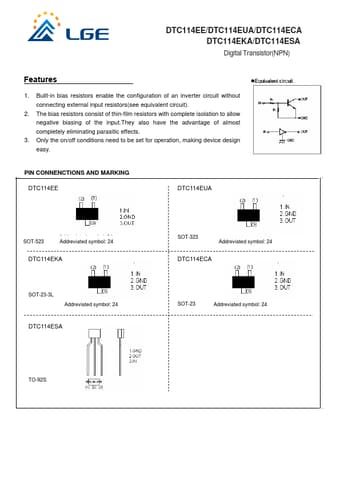

DTC114EUA NPN Digital Transistor by LGE - Datasheet Preview — Datasheet preview – DTC114EUA

Datasheet Details

Part number	DTC114EUA, DTC114EE
Manufacturer	LGE
File Size	152.81 KB
Description	NPN Digital Transistor
Datasheet	DTC114EE-LGE.pdf
Note	This datasheet PDF includes multiple part numbers: DTC114EUA, DTC114EE. Please refer to the document for exact specifications by model.
Additional preview pages of the DTC114EUA datasheet.

Product details

Features

1. Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit). 2. The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3. Only the on/off conditions need to be set for operation, making device design easy. PIN.
