ER101 Super Fast Rectifiers

ER101 Description

ER101-ER106 Super Fast Rectifiers VOLTAGE RANGE: 100 *- 600 V CURRENT: 1.0 A .

ER101 Features

* Low cost Low leakage Low forward voltage drop High current capability Easily cleaned with alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 Mechanical Data Case:JEDEC DO
* 41,molded plastic Polarity: Color band denotes cathode Weight: 0.012 ounces,0.34

📥 Download Datasheet

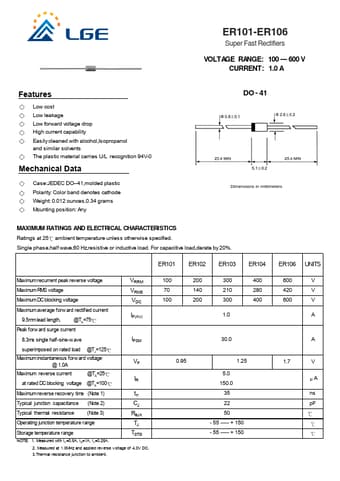

Preview of ER101 PDF
datasheet Preview Page 2

Datasheet Details

Part number
ER101
Manufacturer
LGE
File Size
170.86 KB
Datasheet
ER101-LGE.pdf
Description
Super Fast Rectifiers
