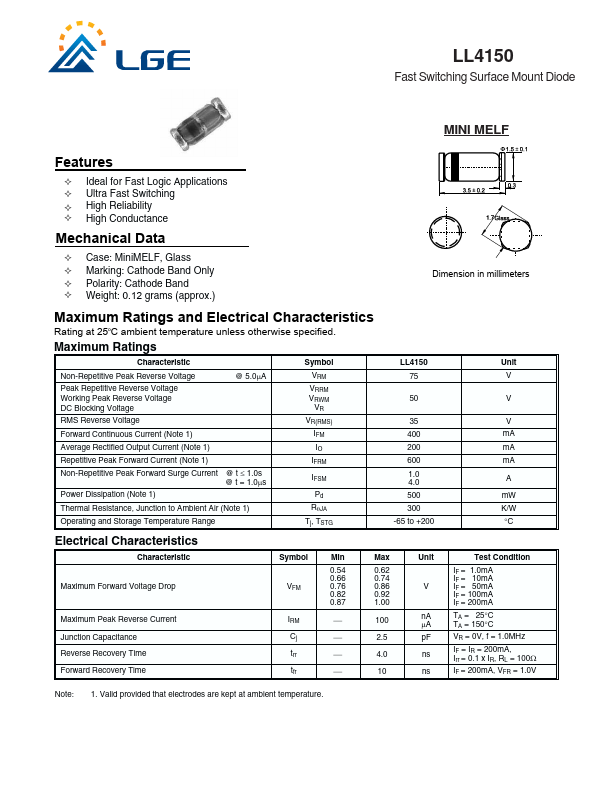

LL4150
Features
Ideal for Fast Logic Applications Ultra Fast Switching High Reliability High Conductance
Mechanical Data
Case: Mini MELF, Glass Marking: Cathode Band Only Polarity: Cathode Band Weight: 0.12 grams (approx.)
Dimension in millimeters
Maximum Ratings and Electrical Characteristics
Rating at 25o C ambient temperature unless otherwise specified.
Maximum Ratings
Characteristic
Symbol
Unit
Non-Repetitive Peak Reverse Voltage
@ 5.0m A
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
VRRM
VRWM
RMS Reverse Voltage
VR(RMS)
Forward Continuous Current (Note 1)
400 m A
Average Rectified Output Current (Note 1)
200 m A
Repetitive Peak Forward Current (Note 1)
IFRM
600 m A
Non-Repetitive Peak Forward Surge Current @ t £ 1.0s @ t = 1.0ms
IFSM
1.0 4.0
Power Dissipation (Note 1)
Pd
500 m W
Thermal Resistance, Junction to Ambient Air (Note 1)
Rq...
