MBR1635, MBR1630, Schottky Barrier Rectifier

MBR1630-MBR16100 Schottky Barrier Rectifier VOLTAGE RANGE: 30 - 100 V CURRENT: 16 A .

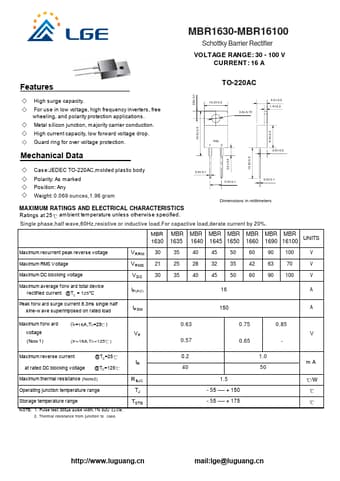

datasheet Preview Page 1 from Datasheet4u.com

MBR1630-LGE.pdf

MBR1635 Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR1635, MBR1630. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR1635, MBR1630

Manufacturer:

LGE

File Size:

214.86 KB

Description:

Schottky Barrier Rectifier

Note:

This datasheet PDF includes multiple part numbers: MBR1635, MBR1630.
Please refer to the document for exact specifications by model.

Applications

* . Metal s ilicon junction, m ajority carrier conduction. High current capacity, low forward voltage drop. Guard ring for over voltage protection. Mechanical Data 19.0± 0.5 10.2± 0.2 3.8± 0.15 4.5± 0.2 1.4± 0.2 PIN 12 2.6± 0.2 3.5± 0.3 13.8± 0.5 8.9± 0.2 Cas e:JEDEC TO-220AC,m olded plas tic
