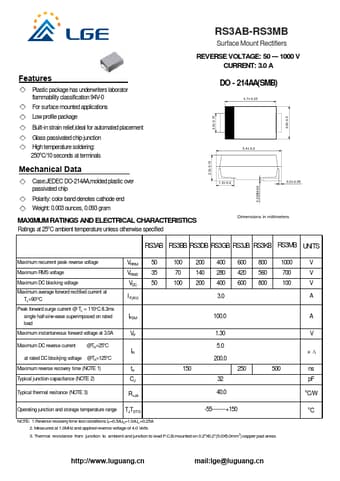

RS3AB-RS3MB
Surface Mount Rectifiers
Features
Plastic package has underwriters laborator flammability classification 94V-0 For surface mounted applications Low profile package
Built-in strain relief,ideal for automated placement
Glass passivated chip junction High temperature soldering: 11 1 250oC/10 seconds at terminals
111
2.0± 0.15
REVERSE VOLTAGE: 50 --- 1000 V CURRENT: 3.0 A
DO - 214AA(SMB)
4.7± 0.25
5.4± 0.2
3.6± 0.3
2.3± 0.15
Mechanical Data
Case:JEDEC DO-214AA,molded plastic over 11 11passivated chip
Polarity: color band denotes cathode end Weight: 0.003 ounces, 0.093 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25oC ambient temperature unless otherwise specified
1.3± 0.2
0.2± 0.05
0.
RS3GB Datasheet
