S3M

3.0AMPS. Surface Mount Rectifiers

S3M Features

* For surface mounted application Glass passivated junction chip. Low forward voltage drop High current capability Easy pick and place High surge current capability Plastic material used carries Underwriters Laboratory Classification 94V-0 High temperature soldering: 260oC / 10 seconds at terminals

S3M Datasheet (140.54 KB)

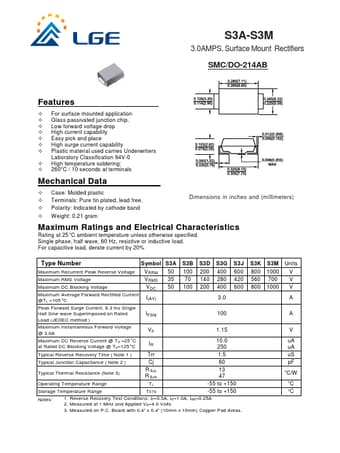

Preview of S3M PDF

Datasheet Details

Part number:

S3M

Manufacturer:

LGE

File Size:

140.54 KB

Description:

3.0amps. surface mount rectifiers.
