SDBS115, SDB12 - Schottky Barrier Bridge Rectifiers

Datasheet Details

Part number	SDBS115, SDB12
Manufacturer	LGE
File Size	219.59 KB
Description	Schottky Barrier Bridge Rectifiers
Datasheet	SDB12-LGE.pdf
Note	This datasheet PDF includes multiple part numbers: SDBS115, SDB12. Please refer to the document for exact specifications by model.

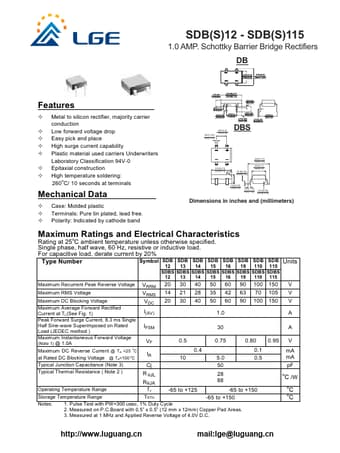

Metal to silicon rectifier, majority carrier conduction Low forward voltage drop Easy pick and place High surge current capability Plastic material used carriers Underwriters Laboratory Classification 94V-0 Epitaxial construction High temperature soldering: 260oC/ 10 seconds at terminals Mechanical Data Case: Molded plastic Terminals: Pure tin plated, lead free. Polarity: Indicated by cathode band .047(1.20) .040(1.02) .205(5.2) .195(5.0) DBS .335(8.51) .320(8.13) 450 .013(0.33) .0088(0.22.
