SF1050F - Super Fast Rectifiers

Product Overview

LGE

Part number	SF1050F
Manufacturer	LGE
File Size	164.85 KB
Description	Super Fast Rectifiers
Datasheet	SF1050F Datasheet
Note	This datasheet PDF includes multiple part numbers: SF1050F, SF1010F. Please refer to the document for exact specifications by model.

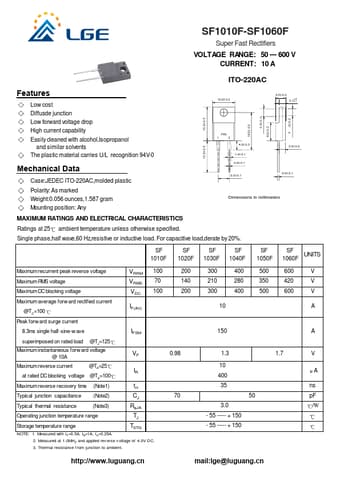

Additional preview pages of the SF1050F datasheet.

Low cost Diffusde junction Low forward voltage drop High current capability Easily cleaned with alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 Mechanical Data Case:JEDEC ITO-220AC,molded plastic 13.5± 0.5 15.2± 0.5 10.2± 0.2 4.5± 0.2 3.1+-00..12 16.5± 0.3 3.3± 0.1 8.2± 0.2 3 .2± 0.2 PIN 12 4.0± 0.3 1.4± 0.1 0.6± 0.1 5.0± 0.1 2.6± 0.2 0.6± 0.1 Polarity: As marked Weight:0.056 ounces,1.587 gram Mounting position: Any Dimensions in millimeter.
