SM5402 - Surface Mount Rectifiers

Product Overview

LGE

📥 Download Datasheet

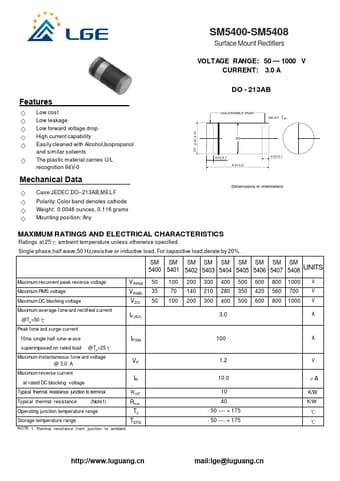

SM5402 Surface Mount Rectifiers by LGE - Datasheet Preview — Datasheet preview – SM5402

Datasheet Details

Part number	SM5402
Manufacturer	LGE
File Size	137.29 KB
Description	Surface Mount Rectifiers
Datasheet	SM5402 Datasheet
Note	This datasheet PDF includes multiple part numbers: SM5402, SM5400. Please refer to the document for exact specifications by model.
Additional preview pages of the SM5402 datasheet.

Product details

Features

Low cost Low leakage Low forward voltage drop High current capability Easily cleaned with Alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 Mechanical Data Case:JEDEC DO--213AB,MELF Polarity: Color band denotes cathode Weight: 0.0046 ounces, 0.116 grams Mounting position: Any D1 2.6± 0.15 DO - 213AB.
