SMAFL5925 - Silicon Zener Diodes

Product Overview

LGE

📥 Download Datasheet

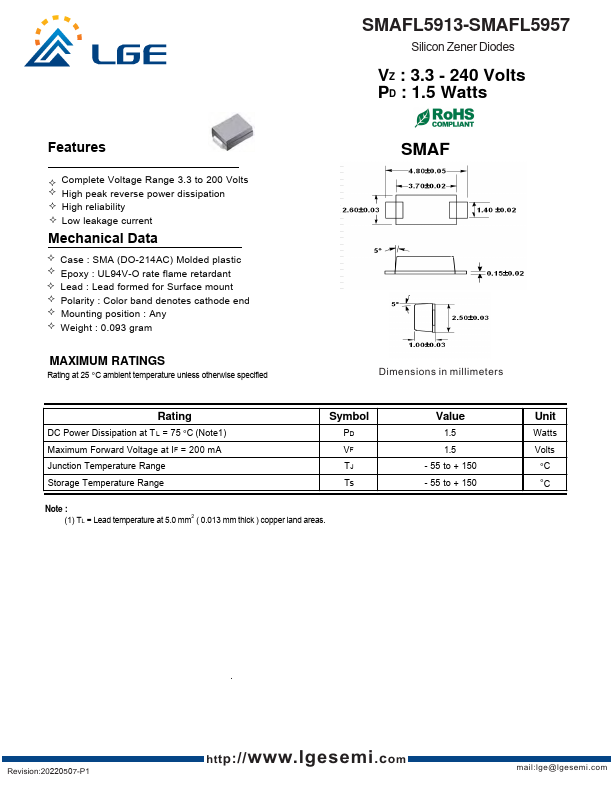

SMAFL5925 Silicon Zener Diodes by LGE - Datasheet Preview — Datasheet preview – SMAFL5925

Datasheet Details

Part number	SMAFL5925
Manufacturer	LGE
File Size	1.49 MB
Description	Silicon Zener Diodes
Datasheet	SMAFL5925 Datasheet
Note	This datasheet PDF includes multiple part numbers: SMAFL5925, SMAFL5913. Please refer to the document for exact specifications by model.

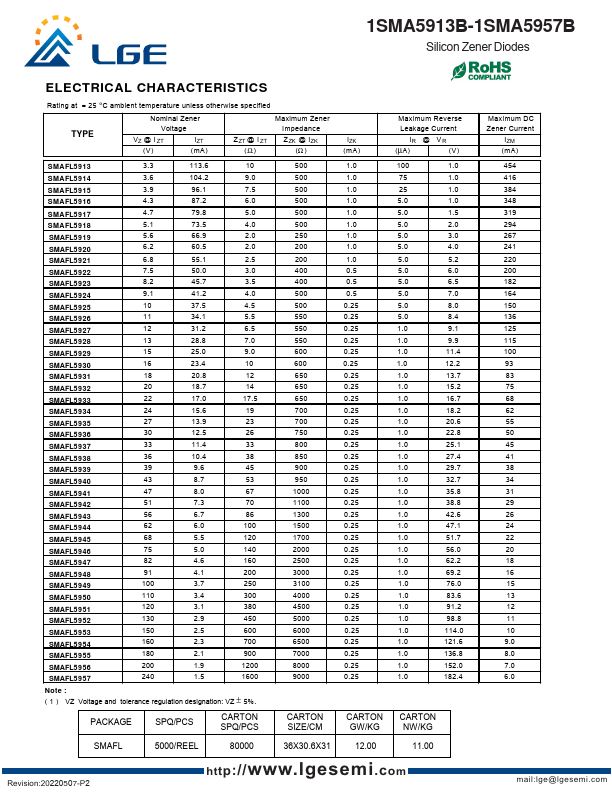

Additional preview pages of the SMAFL5925 datasheet.

Product details

Features

Complete Voltage Range 3.3 to 200 Volts High peak reverse power dissipation High reliability Low leakage current Mechanical Data Case : SMA (DO-214AC) Molded plastic Epoxy : UL94V-O rate flame retardant Lead : Lead formed for Surface mount Polarity : Color band denotes cathode end Mounting position : Any Weight : 0.093 gram.
