W10 - Silicon Bridge Rectifiers

Datasheet Summary

Features

  • Rating to 1000V PRV Surge overload rating to 30 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-250 method 2026 Plastic material has UL flammability recognition 94V-O Weight: 0.050 ounces,1.42 grams Glass passivated chip junctions 32.3 MIN 29.5± 0.5 WOM 4.3± 0.5 8 .1± 0.55 0 .8± 0.1 Dimensions in millimeters 4.3± 0.5 5.1± 0.55.

📥 Download Datasheet

Datasheet preview – W10

Datasheet Details

Part number W10
Manufacturer LGE
File Size 105.67 KB
Description Silicon Bridge Rectifiers
Datasheet download datasheet W10 Datasheet
Additional preview pages of the W10 datasheet.

📁 Similar Datasheet

  • W10 - Glass Passivated Single-Phase Bridge Rectifiers (Semitel)
  • W10 - SILICON BRIDGE RECTIFIERS (Sunmate)
  • W10 - 1.5A WOM BRIDGE RECTIFIERS (Leshan Radio Company)
  • W10 - SINGLE-PHASE SILICON BRIDGE (GOOD-ARK Electronics)
  • W10 - 1.5A SINGLE - PHASE SILICON BRIDGE (Semtech Corporation)
  • W10 - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
  • W10 - Silicon Bridge Rectifier (Multicomp)
  • W10 - Single Phase 1.5 AMPS. Silicon Bridge Rectifiers (Taiwan Semiconductor)
  • W10 - SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS (Kingtronics)
  • W10 - Silicon Bridge Rectifiers (GME)
Other Datasheets by LGE

    Full PDF Text Transcription

    Click to expand full text

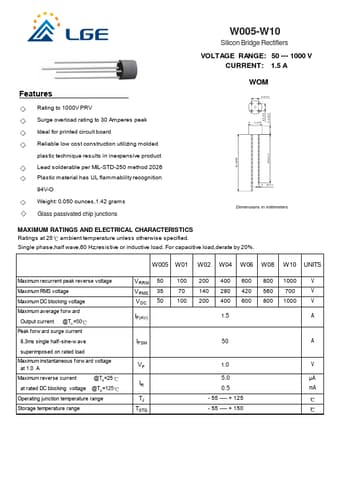

    W005-W10 Silicon Bridge Rectifiers VOLTAGE RANGE: 50 --- 1000 V CURRENT: 1.5 A Features Rating to 1000V PRV Surge overload rating to 30 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-250 method 2026 Plastic material has UL flammability recognition 94V-O Weight: 0.050 ounces,1.42 grams Glass passivated chip junctions 32.3 MIN 29.5± 0.5 WOM 4.3± 0.5 8 .1± 0.55 0 .8± 0.1 Dimensions in millimeters 4.3± 0.5 5.1± 0.55 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
