LM1601616AD - 1.5 inch 16x16 Dot Matrix LED Display

Product Overview

LIGHTKEY

Part number	LM1601616AD
Manufacturer	LIGHTKEY
File Size	156.27 KB
Description	1.5 inch 16x16 Dot Matrix LED Display
Datasheet	LM1601616AD Datasheet
Note	This datasheet PDF includes multiple part numbers: LM1601616AD, LM1601616A. Please refer to the document for exact specifications by model.

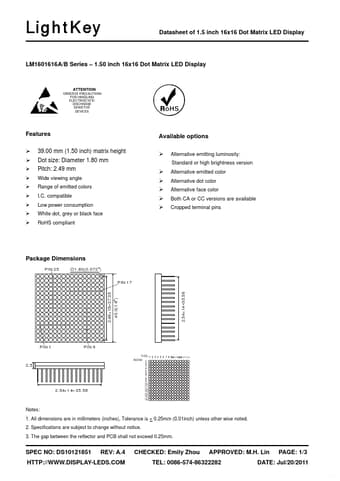

Additional preview pages of the LM1601616AD datasheet.

¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative dot color Alternative face color Both CA or CC versions are available Cropped terminal pins 39.00 mm (1.50 inch) matrix height Dot size: Diameter 1.80 mm Pitch: 2.49 mm Wide viewing angle Range of emitted colors I. C. compatible Low power consumption White dot, grey or black face RoHS compliant Package Dimensions PIN 25 Ø1.80(0.072 ) PIN 17.
