LM23088EUG, LM23088E - 2.30 inch 8x8 Dot Matrix LED Display

LIGHTKEY

Datasheet Details

Part number	LM23088EUG, LM23088E
Manufacturer	LIGHTKEY
File Size	209.91 KB
Description	2.30 inch 8x8 Dot Matrix LED Display
Datasheet	LM23088E-LIGHTKEY.pdf
Note	This datasheet PDF includes multiple part numbers: LM23088EUG, LM23088E. Please refer to the document for exact specifications by model.

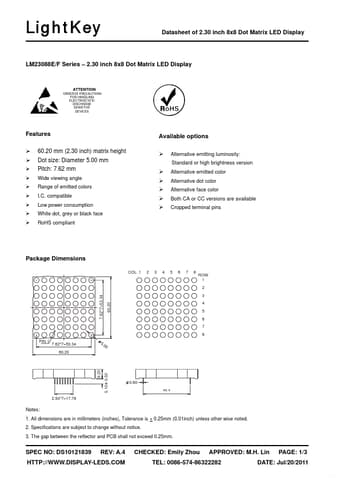

¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative dot color Alternative face color Both CA or CC versions are available Cropped terminal pins 60.20 mm (2.30 inch) matrix height Dot size: Diameter 5.00 mm Pitch: 7.62 mm Wide viewing angle Range of emitted colors I. C. compatible Low power consumption White dot, grey or black face RoHS compliant Package Dimensions COL. 1 2 3 4 5 6 7 8 ROW 1 2.
