LEG2063-PF LED LAMPS

This test is conducted for the purpose of detemining the resistance of a part in electrical and themal stressed. Reference Standard MIL-STD-750: 1026 MIL-STD-883: 1005 JIS C 7021: B-1 Operating Life Test High Temperature Storage Test 1.Ta=105 ℃±5 ℃ 2.t=1000 hrs (-24hrs, +72hrs) The purpose of t.

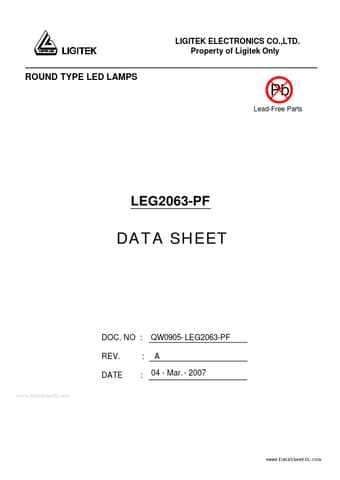

LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only ROUND TYPE LED LAMPS Pb Lead-Free Parts LEG2063-PF DATA SHEET DOC. NO : REV. DATE www.DataSheet4U.com QW0905- LEG2063-PF : A 04 - Mar. - 2007 : LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only PART NO. LEG2063-PF Page 1/6 Package Dimensions 3.0 4.0 4.2 5.2 1.5MAX E 25.0MIN G 1 2 0.5 TYP 1 2 1.0MIN 2.54TYP Note : 1.All dimension are in millimeter tolerance is ± 0.25mm unless otherwise noted. 2.Specifications.
