LEG2092 LED LAMPS

This test is conducted for the purpose of detemining the resisance of a part in electrical and themal stressed. Reference Standard MIL-STD-750: 1026 MIL-STD-883: 1005 JIS C 7021: B-1 Operating Life Test High Temperature Storage Test 1.Ta=105 ℃±5 ℃ 2.t=1000 hrs (-24hrs, +72hrs) The purpose of th.

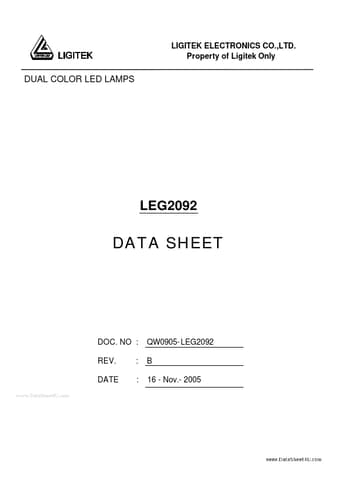

LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only DUAL COLOR LED LAMPS LEG2092 DATA SHEET DOC. NO : REV. DATE www.DataSheet4U.com QW0905- LEG2092 B 16 - Nov.- 2005 : : LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only PART NO. LEG2092 Page 1/5 Package Dimensions 3.0 4.0 4.2 1.5 MAX 5.2 6.7±0.5 G E 1 2 3 0.5 TYP 18.0MIN 1 2.0MIN 2 3 1.ANODE GREEN 2.COMMON CATHODE 3.ANODE ORANGE 2.0MIN 2.54TYP 2.54TYP Note : 1.All dimension are in millimeter tolerance is ±.
