LHIR3333-H18 INFRARED EMITTING DIODES

: The LHIR3333/H18 series are high power solution grown efficiency Gallium Arsenide infrared emitting diodes encapsulated in water clear plastic T-1 3/4 package individually Device Selection Guide: PART NO LHIR3333/H18 MATERIAL GaAIAs/GaAs LENS COLOR Water Clear LIGITEK ELECTRONICS CO.,LTD. www.

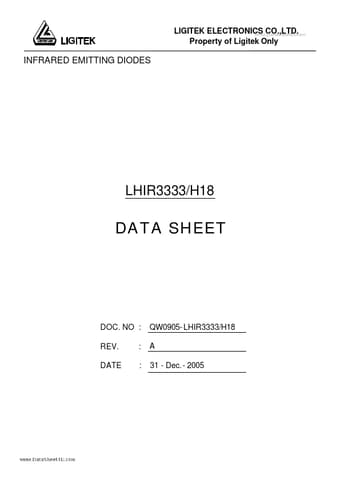

LIGITEK ELECTRONICS CO.,LTD. www.DataSheet4U.com Property of Ligitek Only INFRARED EMITTING DIODES LHIR3333/H18 DATA SHEET DOC. NO : REV. DATE : : QW0905- LHIR3333/H18 A 31 - Dec. - 2005 LIGITEK ELECTRONICS CO.,LTD. www.DataSheet4U.com Property of Ligitek Only PART NO. LHIR3333/H18 Page 1/6 Package Dimensions 5.0 5.9 7.6 8.6 1.5MAX 25.0MIN 0.5 TYP 1.0MIN 2.54TYP + - Note : 1.All dimension are in millimeter tolerance is ±0.25mm unless otherwise noted. 2.Specifications are .
