LURF9553-4S-TR1 - PLCC-4 TOPLED

LIGITEK electronics

📥 Download Datasheet

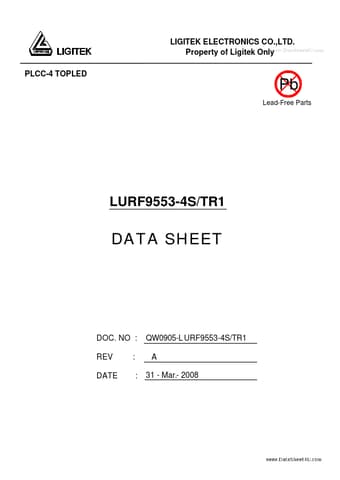

LURF9553-4S-TR1 Datasheet Preview — Preview of LURF9553-4S-TR1 PDF

Datasheet Details

Part number	LURF9553-4S-TR1
Manufacturer	LIGITEK electronics
File Size	163.40 KB
Description	PLCC-4 TOPLED
Datasheet	LURF9553-4S-TR1_LIGITEKelectronics.pdf

LURF9553-4S-TR1 Product details

Description

12.0mm tape,7"reel Quantity/Reel 1500 devices LIGITEK ELECTRONICS CO.,LTD.Property of Ligitek Only PART NO.LURF9553-4S/TR1 www.DataSheet4U.com Page 6/7 Drive Method An LED is a current-operated device.In order to ensure intensity uniformity on multiple LEDs connected in parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit, in series with each LED as shown in Circuit A below Circuit model A LED Circuit model B LED (A) Recommen

Features

package : 12mm tape on 7" diameter reels.
feature of the device :more light due to higher optical efficiency,higher ambient temperature at the same current possible compared to TOPLED.
assembly methods :suitabl for all SMT assembly methods.
ESD-withstand voltage :up to 2kv acc. to JESD22-A114-B.
