LURF9653S-50A SQUARE WITH 4LEADS TYPE LED LAMPS

This test is conducted for the purpose of detemining the resistance of a part in electrical and themal stressed. Reference Standard MIL-STD-750: 1026 MIL-STD-883: 1005 JIS C 7021: B-1 Operating Life Test High Temperature Storage Test 1.Ta=105 ℃±5℃ 2.t=1000 hrs (-24hrs, +72hrs) The purpose of th.

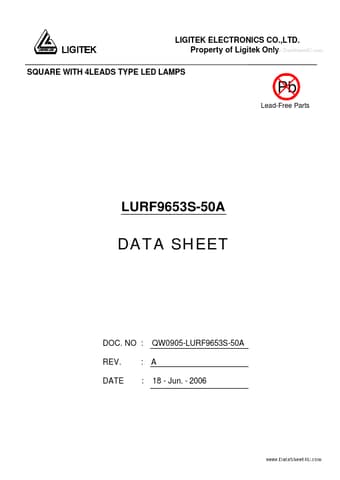

LIGITEK ELECTRONICS CO.,LTD. www.DataSheet4U.com Property of Ligitek Only SQUARE WITH 4LEADS TYPE LED LAMPS Pb Lead-Free Parts LURF9653S-50A DATA SHEET DOC. NO : REV. DATE : : QW0905-LURF9653S-50A A 18 - Jun. - 2006 LIGITEK ELECTRONICS CO.,LTD. Property of Ligitek Only www.DataSheet4U.com PART NO. LURF9653S-50A Page 1/5 Package Dimensions 7.62±0.5 7.35 4.8 3.5±0.5 ANODE 7.62±0.5 5.08±0.3 0.8 CATHODE ψ5.0 1.55 2.55 2.5 0.4 5.08±0.3 Note : 1.All dimension are in millimeter tolerance .
