Part number:
J175
Manufacturer:
LINEAR SYSTEMS
File Size:
257.88 KB
Description:
Single p-channel jfet switch.

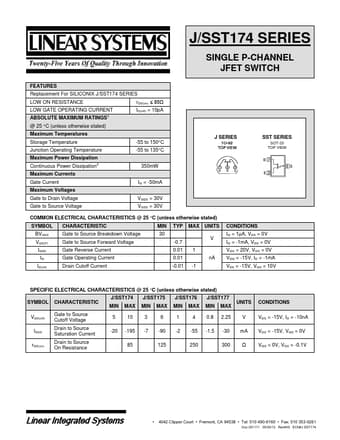

* Replacement For SILICONIX J/SST174 SERIES LOW ON RESISTANCE rDS(on) ≤ 85Ω LOW GATE OPERATING CURRENT ABSOLUTE MAXIMUM RATINGS1 ID(off) = 10pA @ 25 °C (unless otherwise stated) Maximum Temperatures Storage Temperature -55 to 150°C Junction Operating Temperature -55 to 135°C Maximum Power
J175
LINEAR SYSTEMS
257.88 KB
Single p-channel jfet switch.
