SD211DE Features

* Ultra-High Speed Switching

* ION: 1ns

* Ultra-Low Reverse Capacitance: 0.2pF

* Low Guaranteed rDS @5V

* Low Turn-On Threshold Voltage

* N-Channel Enhancement Mode Benefits

* High-Speed System Performance

* Low Insertion Loss at High Fr

SD211DE General Description

The SD211DE/SST211 series consists of enhancement-mode MOSFETs designed for high speed low-glitch switching in audio, video and high-frequency applications. The SD211 may be used for a ±5-V analog switching or as a high speed driver of the SD214. The SD214 is normally used for ±10-V analog switching.

SD211DE Datasheet (311.35 KB)

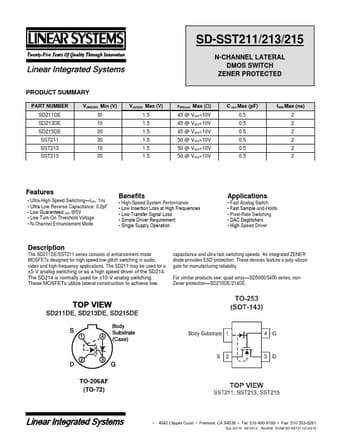

SD211DE Datasheet Preview — Preview of SD211DE PDF

Datasheet Details

Part number:

SD211DE

Manufacturer:

LINEAR SYSTEMS

File Size:

311.35 KB

Description:

Mosfet.
SD-SST211/213/215 N-CHANNEL LATERAL DMOS SWITCH ZENER PROTECTED PRODUCT SUMMARY PART NUMBER SD211DE SD213DE SD215DE SST211 SST213 SST215 V(BR)DS Mi.
