LM385 - 1.2 & 2.5V MICROPOWER VOLTAGE REFERENCE

Description

The LM385/385B Micropower Voltage References are two terminal bandgap reference diodes designed and optimized for accurate low power operation in portable and other power sensitive systems.

Features

  • Guaranteed 1% Initial Accuracy (LM385B-1.2).
  • Guaranteed 2.5% Initial Accuracy (LM385-1.2).
  • Guaranteed 1.5% Initial Accuracy (LM385B-2.5).
  • Guaranteed 3.0% Initial Accuracy (LM385-2.5).
  • Guaranteed 20µA Operating Current.
  • Low Temperature coefficient.
  • Operating Current of 20µA to 20mA.
  • Very Low Dynamic Impedance: 10Ω.

📥 Download Datasheet

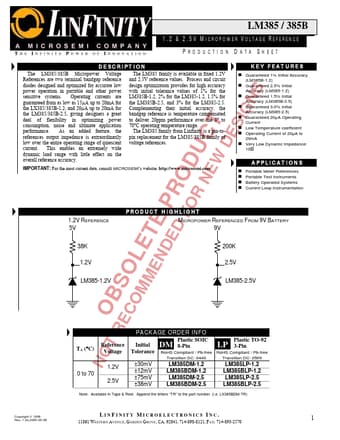

Datasheet preview – LM385

Datasheet Details

Part number LM385
Manufacturer LINFINITY
File Size 262.90 KB
Description 1.2 & 2.5V MICROPOWER VOLTAGE REFERENCE
Datasheet download datasheet LM385 Datasheet
Additional preview pages of the LM385 datasheet.

📁 Similar Datasheet

  • LM385 - Adjustable Micropower Voltage Reference (Analog Integrations Corporation)
  • LM385 - MICROPOWER VOLTAGE REFERENCE DIODES (Motorola)
  • LM385 - Adjustable Micropower Voltage References (National Semiconductor)
  • LM385 - Micropower Voltage Reference Diode (HTC)
  • LM385-1.2 - Micropower Voltage Reference Diode (National Semiconductor)
  • LM385-1.2 - Micropower Voltage References (Texas Instruments)
  • LM385-1.2 - Micropower Voltage Reference (Linear)
  • LM385-1.2-N - Micropower Voltage Reference Diode (Texas Instruments)
  • LM385-1.2V - BANDGAP VOLTAGE REFERENCES (TelCom Semiconductor Inc)
  • LM385-2.5 - Micropower Voltage Reference (Linear Technology)
Other Datasheets by LINFINITY
  • LM385B - 1.2 & 2.5V MICROPOWER VOLTAGE REFERENCE

Full PDF Text Transcription

Click to expand full text
NOT RECOOBMSMOENLDEETDEFOPRRNOEDWUDECSTIGNS THE INFINITE POWER OF INNOVATION LM385 / 385B 1.2 & 2.5V MICROPOWER VOLTAGE REFERENCE PRODUCTION DATA SHEET DESCRIPTION The LM385/385B Micropower Voltage References are two terminal bandgap reference diodes designed and optimized for accurate low power operation in portable and other power sensitive systems. Operating currents are guaranteed from as low as 15µA up to 20mA for the LX385/385B-1.2, and 20µA up to 20mA for the LM385/385B-2.5, giving designers a great deal of flexibility in optimizing power consumption, noise and ultimate application performance. As an added feature, the references output impedance is extraordinarily low over the entire operating range of quiescent current.
