SG2543

POWER SUPPLY OUTPUT SUPERVISORY CIRCUIT

SG2543 General Description

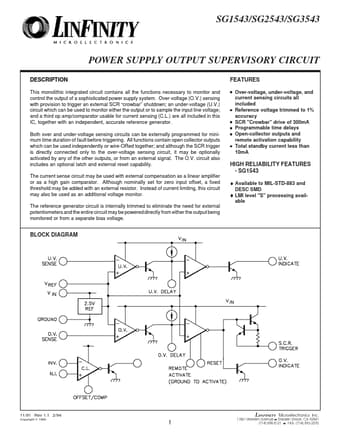

This monolithic integrated circuit contains all the functions necessary to monitor and control the output of a sophisticated power supply system. Over-voltage (O.V.) sensing with provision to trigger an external SCR “crowbar” shutdown; an under-voltage (U.V.) circuit which can be used to monitor eit.

SG2543 Datasheet (113.14 KB)

Preview of SG2543 PDF

Datasheet Details

Part number:

SG2543

Manufacturer:

LINFINITY

File Size:

113.14 KB

Description:

Power supply output supervisory circuit.
