MUR1050 Ultra Fast Recovery Diodes

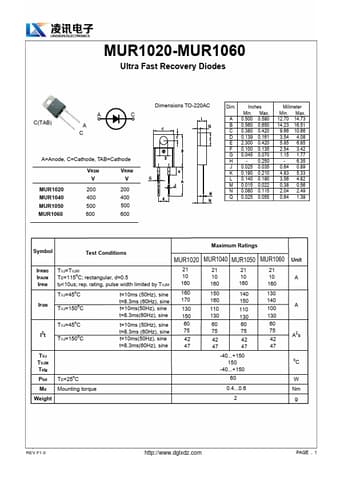

MUR1020-MUR1060 Ultra Fast Recovery Diodes C(TAB) A A C C A=Anode, C=Cathode, TAB=Cathode MUR1020 MUR1040 MUR1050 MUR1060 VRSM V 200 400 500 600 VRRM V 200 400 500 600 Dimensions TO-220AC Dim. A B C D E F G H J K L M N Q Inches Min. Max. 0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 - 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min. Max. 12.70 14.73 14.23 16.51 9.66 10.66 3.54 4.08 5.85 6.85 2.54 3.42 1..

MUR1020-LINGXUN.pdf

MUR1050 Datasheet Preview — This datasheet PDF includes multiple part numbers: MUR1050, MUR1020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MUR1050, MUR1020

Manufacturer:

LINGXUN

File Size:

842.30 KB

Description:

Ultra fast recovery diodes.

Note:

This datasheet PDF includes multiple part numbers: MUR1050, MUR1020.
Please refer to the document for exact specifications by model.
