LTS-315AJD LED Display

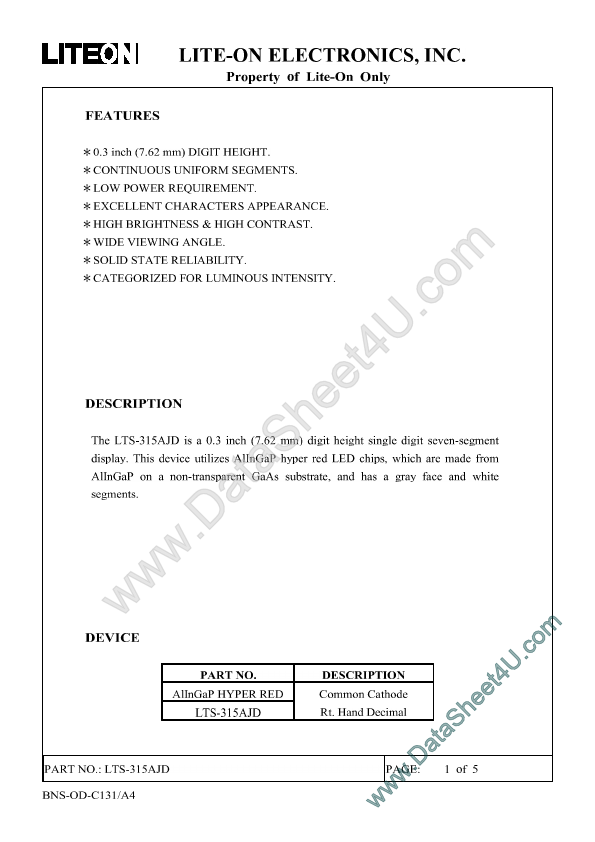

The LTS-315AJD is a 0.3 inch (7.62 mm) digit height single digit seven-segment display. This device utilizes AlInGaP hyper red LED chips, which are made from AlInGaP on a non-transparent GaAs substrate, and has a gray face and white segments. DEVICE PART NO. AlInGaP HYPER RED LTS-315AJD DESCRIPTI.

LTS315AJD_LITE-ONElectronics.pdf

This datasheet PDF includes multiple part numbers: LTS-315AJD, LTS315AJD_LITE. Please refer to the document for exact specifications by model.

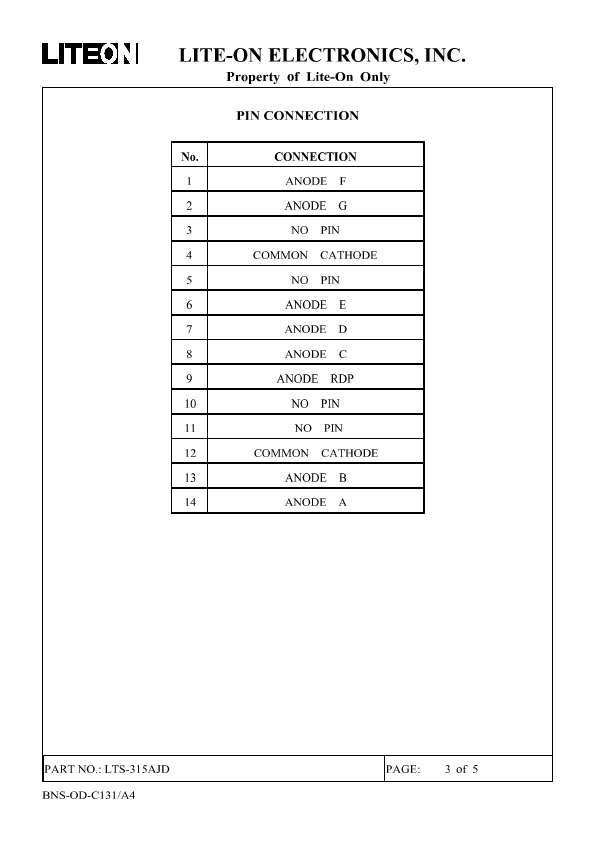

LTS-315AJD Datasheet Preview Page 2 LTS-315AJD Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-315AJD, LTS315AJD_LITE

Manufacturer:

LITE-ON Electronics

File Size:

357.72 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTS-315AJD, LTS315AJD_LITE.
Please refer to the document for exact specifications by model.
