LTV-217-G, LTV-217-G-LITE, Photocoupler

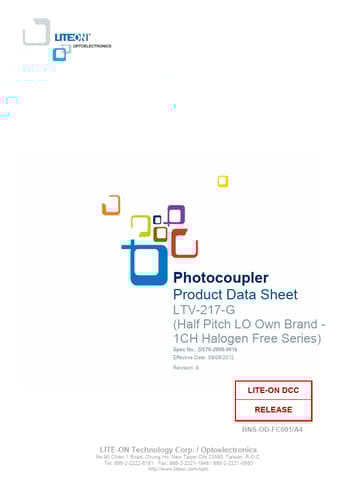

Photocoupler Product Data Sheet LTV-217-G (Half Pitch LO Own Brand 1CH Halogen Free Series) Spec No.: DS70-2009-0016 Effective Date: 09/06/2012 Revisi.

datasheet Preview Page 1 from Datasheet4u.com

LTV-217-G-LITE-ONElectronics.pdf

LTV-217-G Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-217-G, LTV-217-G-LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTV-217-G, LTV-217-G-LITE

Manufacturer:

LITE-ON Electronics

File Size:

546.51 KB

Description:

Photocoupler

Note:

This datasheet PDF includes multiple part numbers: LTV-217-G, LTV-217-G-LITE.
Please refer to the document for exact specifications by model.

Features

* Current transfer ratio ( CTR : MIN. 50% at IF = 5mA, VCE = 5V )
* Isolation voltage between input and output LTV-217 Series ( Viso = 3.75 KVrms )
* Employs double transfer mold technology
* Safety Approval UL, cUL, CSA, FIMKO, VDE
* Approved (
* Requires “V” ordering option)

Applications

* Hybrid substrates that require high density mounting.
* Programmable controllers
* System appliances, measuring instruments Part No. LTV-217-G Series (Rev. -, July 16, 2012) BNS-OD-C131/A4 Page : 1 of 11 LITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only OUTLINE DIMENSIONS LTV-2
