LTV-217-G-CL, LTV-217-G-CL-LITE, Photocoupler

Photocouplers LTV-217-G-CL 1..
1. Current transfer ratio (CTR) : Min. High input-output isolation voltage. Emp.

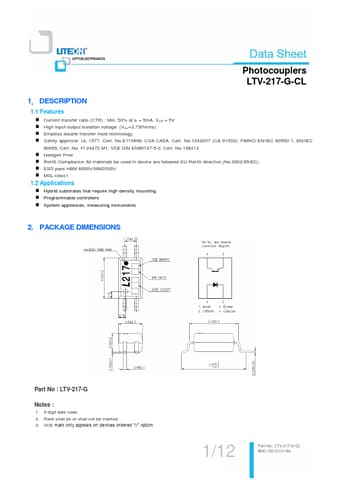

datasheet Preview Page 1 from Datasheet4u.com

LTV-217-G-CL-LITE-ONElectronics.pdf

LTV-217-G-CL Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-217-G-CL, LTV-217-G-CL-LITE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTV-217-G-CL, LTV-217-G-CL-LITE

Manufacturer:

LITE-ON Electronics

File Size:

528.03 KB

Description:

Photocoupler

Note:

This datasheet PDF includes multiple part numbers: LTV-217-G-CL, LTV-217-G-CL-LITE.
Please refer to the document for exact specifications by model.

Features

* Current transfer ratio (CTR) : Min. 50% at IF = 5mA, VCE = 5V
* High input-output isolation voltage. (Viso=3,750Vrms)
* Employs double transfer mold technology
* Safety approval: UL 1577, Cert. No. E113898; CSA CA5A, Cert. No.1243207 (CA 91533); FIMKO EN/IEC 60950-1, EN/IEC 60065; C

Applications

* Hybrid substrates that require high density mounting.
* Programmable controllers
* System appliances, measuring instruments 2. PACKAGE DIMENSIONS Part No : LTV-217-G Notes : 1. 3-digit date code. 2. Rank shall be or shall not be marked. 3. VDE mark only appears on devices ordered “V”
