LTV819, LTV-849_LITE (LTV-819 Series) High Density Mounting Type Photocoupler

LTV819 Description

High Density Mounting Type Photocoupler LTV-819 Series .

LTV819 Features

* Current transfer ratio (CTR : MIN. 50% at IF=5mA, VCE=5V) High input-output isolation voltage: (VISO : 5,000Vrms) Compact dual-in-line package LTV-819-1 : 1-channel type LTV-819-2 : 1-channel type LTV-829 : 2-channel type LTV-849 : 4-channel type UL approved (No. E113898) TUV approved (No. R9653630)

LTV819 Applications

* 1. 2. 3. 4. Telephone exchanges. Computer terminals. System appliances, measuring instruments. Signal transmission between circuits of different potentials and impedances. Package Dimensions www. DataSheet4U. com www. DataSheet4U. com 12-115 www. DataSheet4U. com PHOTOCOUPLER Note: 1.Year date code.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTV819, LTV-849_LITE. Please refer to the document for exact specifications by model.

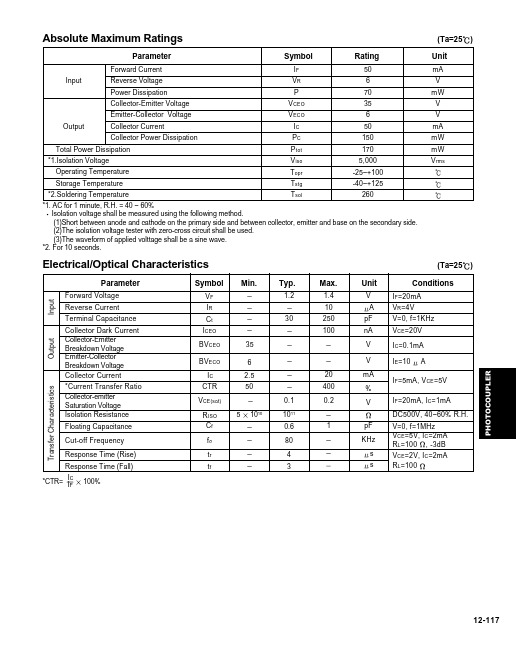

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTV819, LTV-849_LITE
Manufacturer
LITE-ON Electronics
File Size
Direct Link
Datasheet
LTV-849_LITE-ONElectronics.pdf
Description
(LTV-819 Series) High Density Mounting Type Photocoupler
Note
This datasheet PDF includes multiple part numbers: LTV819, LTV-849_LITE.
Please refer to the document for exact specifications by model.
