1N5395S, 1N5391S-LITE - PLASTIC SILICON RECTIFIERS

LITE-ON

📥 Download Datasheet

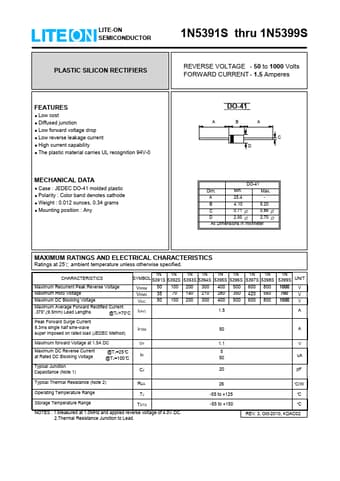

1N5395S Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5395S, 1N5391S-LITE. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	1N5395S, 1N5391S-LITE
Manufacturer	LITEON
File Size	73.12 KB
Description	PLASTIC SILICON RECTIFIERS
Datasheet	1N5391S-LITE-ON.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5395S, 1N5391S-LITE. Please refer to the document for exact specifications by model.

1N5395S Product details

Features

Low cost Diffused junction Low forward voltage drop Low reverse leakage current High current capability The plastic material carries UL recognition 94V-0.
